6-wire.big fitting. general washing machine wash timer: AFTC-WMT-004

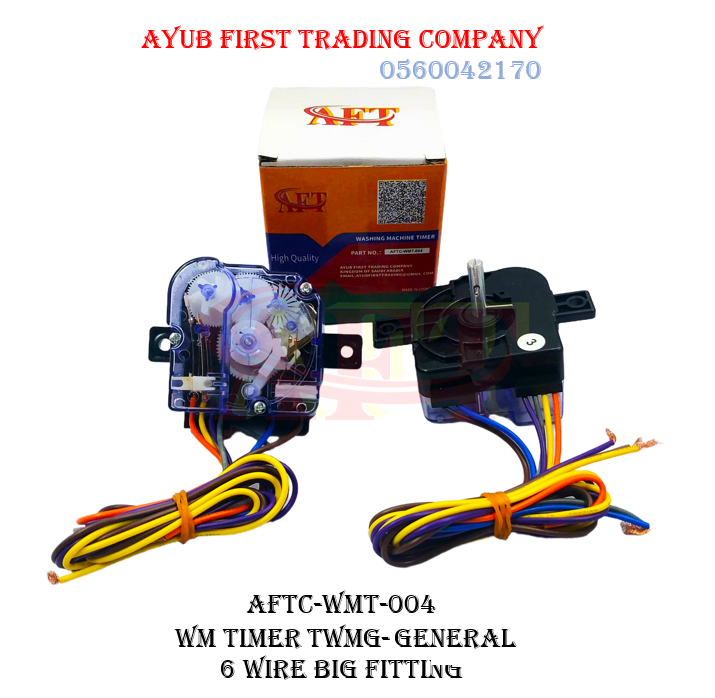

The image shows a 6-wire general washing machine wash timer (Part Number: AFTC-WMT-004) with a “big fitting” design, commonly used in larger semi-automatic “twin tub” washing machines.
⚙️ Technical Specifications
- Model: AFTC-WMT-004 (TWMG-GENERAL).
- Body Type: “Big Fitting” body with wider mounting ears/tabs.
- Wire Count: 6 Wires (colors shown include Yellow, Orange, Blue, and Purple).
- Mechanism: Transparent front casing to inspect the internal gears and silver contact points.
- Control: Single metal shaft for the timer knob.
🔌 Typical Wiring Logic
A 6-wire timer is more complex than basic models because it usually controls both the wash direction and a wash selector (e.g., Normal/Gentle) or a buzzer.
- Power Input (2 wires): Typically one for the main live feed and one for the buzzer circuit.
- Normal Cycle (2 wires): Alternates power to the motor for standard agitation.
- Gentle Cycle (2 wires): Provides longer “pause” times between motor reversals for delicate clothes.
- 📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
