3-wire. Defrost Temperature Control Wire : AFTC-TCW-011

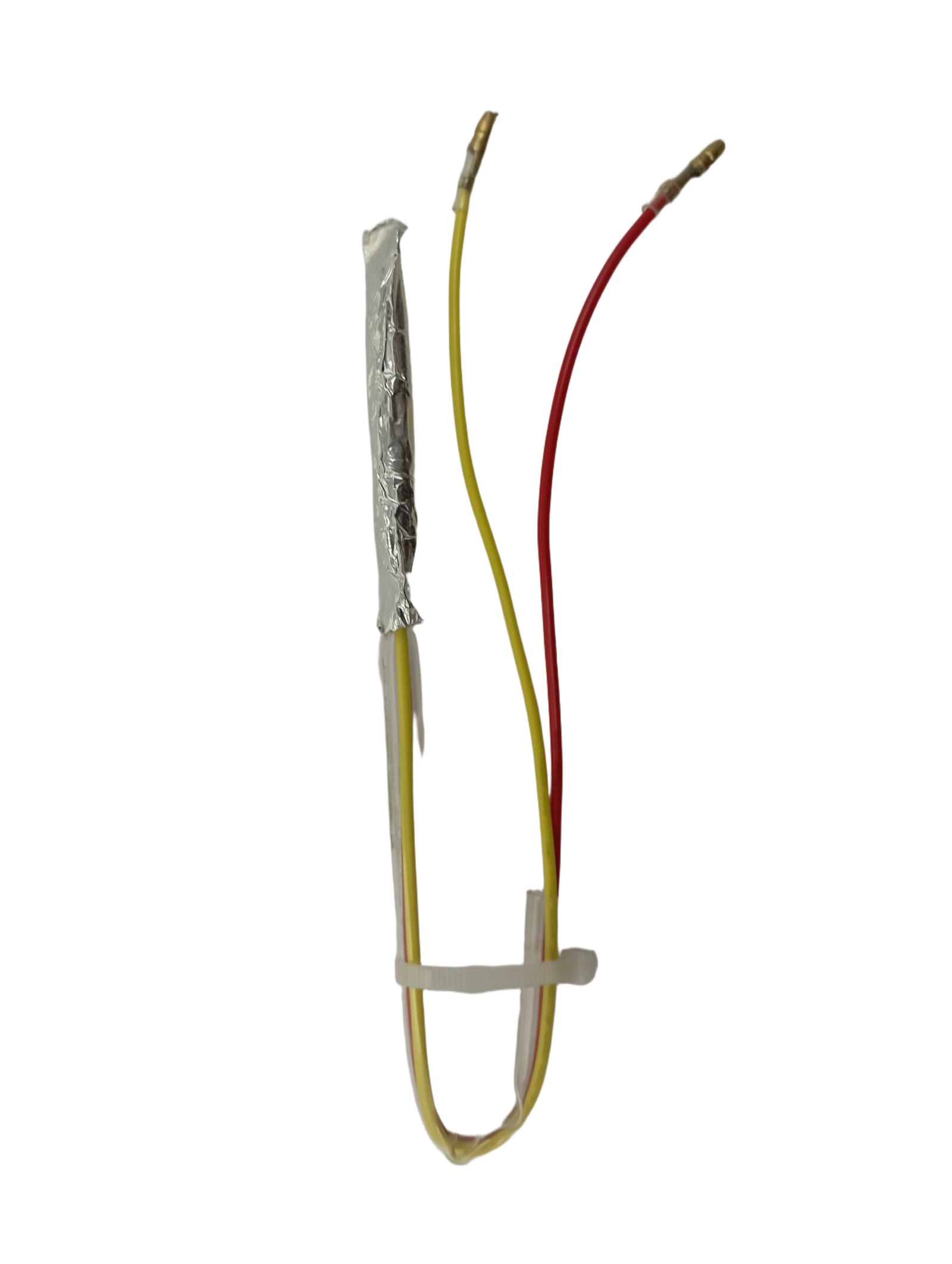

This part is an AFTC-TCW-011 Defrost Temperature Control Wire, a 3-wire bimetal thermostat and thermal fuse assembly used in frost-free refrigerators.
Technical Specifications
- Part Number: AFTC-TCW-011.
- Safety Fuse (FUSE-185): The “185” marking indicates the integrated thermal fuse is rated for 185°F (approximately 85°C). This acts as a permanent fail-safe to cut power if the defrost heater fails to shut off, preventing the appliance from melting or catching fire.
- Configuration: 3-Wire Assembly (typically Red, Yellow, and Brown/Black) consisting of a bimetal thermostat and a thermal fuse encased in a waterproof, foil-wrapped protective sleeve.
- Voltage Rating: Optimized for standard refrigeration systems (typically 220V-240V AC in the Saudi market).
Core Functionality
This component is a critical safety and regulatory part of the automatic defrost system, usually mounted directly onto the evaporator coil:
- Defrost Regulation: The bimetal switch monitors the evaporator temperature. When it senses the coil has warmed up enough to melt all frost (typically around 5°C to 10°C), it opens the circuit to stop the defrost heater.
- Dual Protection: Unlike 2-wire models, the 3-wire design often separates the thermostat and fuse circuits or provides a common ground/return, allowing the refrigerator’s control board to monitor the defrost cycle more precisely.
Common Failure Symptoms
If this part fails, your refrigerator will likely experience “No-Defrost” issues:
- Heavy Ice Build-up: A thick layer of frost on the freezer’s back panel that blocks airflow.
- Warm Fridge Section: While the freezer remains cold, the fresh food section stays warm because air cannot circulate through the iced-up evaporator coils.
- Continuous Running: The compressor runs constantly to compensate for the lack of cooling efficiency.📞 Contact & Procurement DetailsTo secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
