STARTER POWER PACK BIG -002, 2-wire. 1/2 HP to 10 HP. 115V to 288V AC.

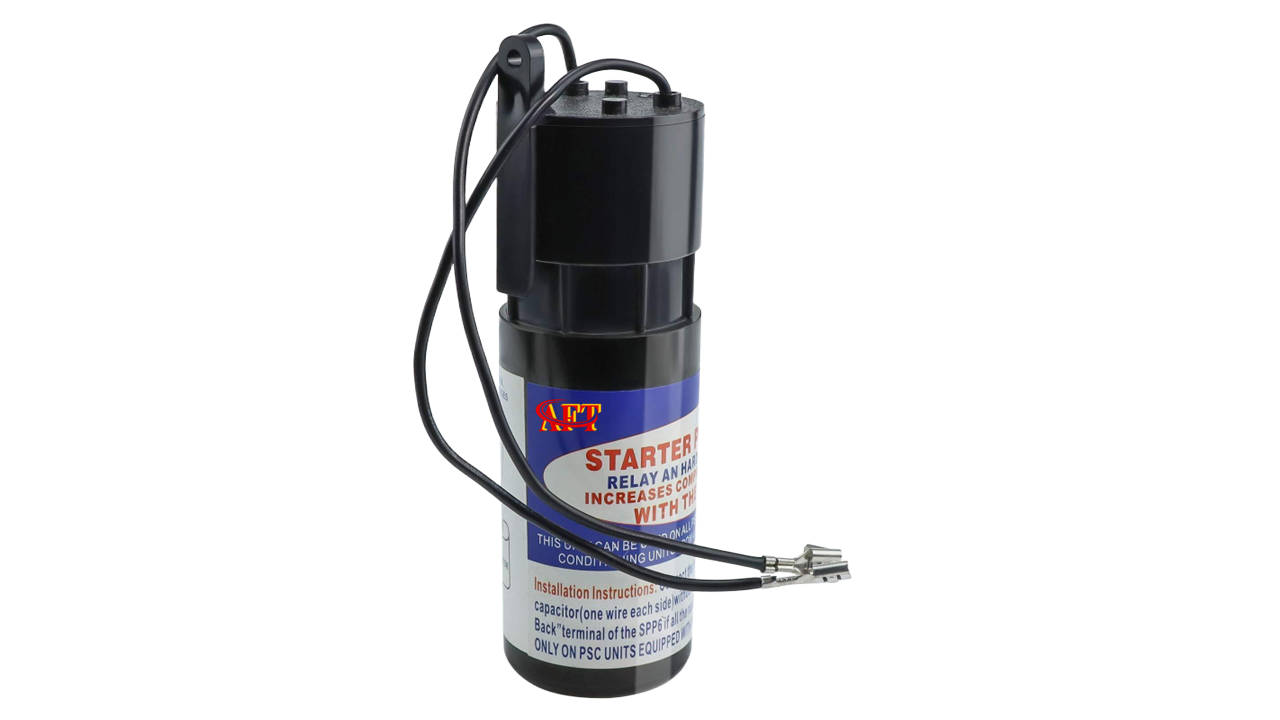

This device is the SPRS-002 STARTER POWER PACK BIG -002, a high-performance “hard start kit” specifically designed for air conditioning and refrigeration compressors.
Core Function & Benefits
This unit combines a relay and a start capacitor into one assembly to assist single-phase compressors during the critical startup phase:
- Torque Boost: Increases the compressor’s starting torque by 500%, providing the “kick” needed to start older, “stuck,” or high-pressure compressors.
- Protection: It reduces the time the compressor spends in the high-amperage “start” mode, which lowers heat buildup in the motor windings and can extend the life of the appliance.
- Performance: Essential for systems in high-heat areas or places with low voltage, where the compressor might otherwise hum but fail to turn over.
Technical Specifications
- Model Number: SPRS-002 / STARTER POWER PACK BIG -002.
- Voltage Range: Operates on systems from 115V to 288V AC.
- Horsepower (HP) Compatibility: Designed for units ranging from 1/2 HP to 10 HP.
- BTU Capacity: Suitable for air conditioning units from 4,000 to 120,000 BTU.
- Type: 2-wire non-polarized electronic hard start kit.
Installation Overview
The “BIG -002” features an Easy 2-Wire Setup that does not require removing any original wires:
- Parallel Connection: The two black wires are connected in parallel with the existing Run Capacitor.
- Universal Terminals: Equipped with female spade connectors that clip directly onto the capacitor’s “Herm” and “Common” terminals.
- Mounting: It typically includes a built-in clip or bracket for secure mounting inside the electrical compartment of the outdoor AC unit.
Description
Description
This device is the SPRS-002 STARTER POWER PACK BIG -002, a high-performance “hard start kit” specifically designed for air conditioning and refrigeration compressors.
Core Function & Benefits
This unit combines a relay and a start capacitor into one assembly to assist single-phase compressors during the critical startup phase:
- Torque Boost: Increases the compressor’s starting torque by 500%, providing the “kick” needed to start older, “stuck,” or high-pressure compressors.
- Protection: It reduces the time the compressor spends in the high-amperage “start” mode, which lowers heat buildup in the motor windings and can extend the life of the appliance.
- Performance: Essential for systems in high-heat areas or places with low voltage, where the compressor might otherwise hum but fail to turn over.
Technical Specifications
- Model Number: SPRS-002 / STARTER POWER PACK BIG -002.
- Voltage Range: Operates on systems from 115V to 288V AC.
- Horsepower (HP) Compatibility: Designed for units ranging from 1/2 HP to 10 HP.
- BTU Capacity: Suitable for air conditioning units from 4,000 to 120,000 BTU.
- Type: 2-wire non-polarized electronic hard start kit.
Installation Overview
The “BIG -002” features an Easy 2-Wire Setup that does not require removing any original wires:
- Parallel Connection: The two black wires are connected in parallel with the existing Run Capacitor.
- Universal Terminals: Equipped with female spade connectors that clip directly onto the capacitor’s “Herm” and “Common” terminals.
- Mounting: It typically includes a built-in clip or bracket for secure mounting inside the electrical compartment of the outdoor AC unit.
