35W. 1PH AC Fan Motor : AFTC-YGN60-6E

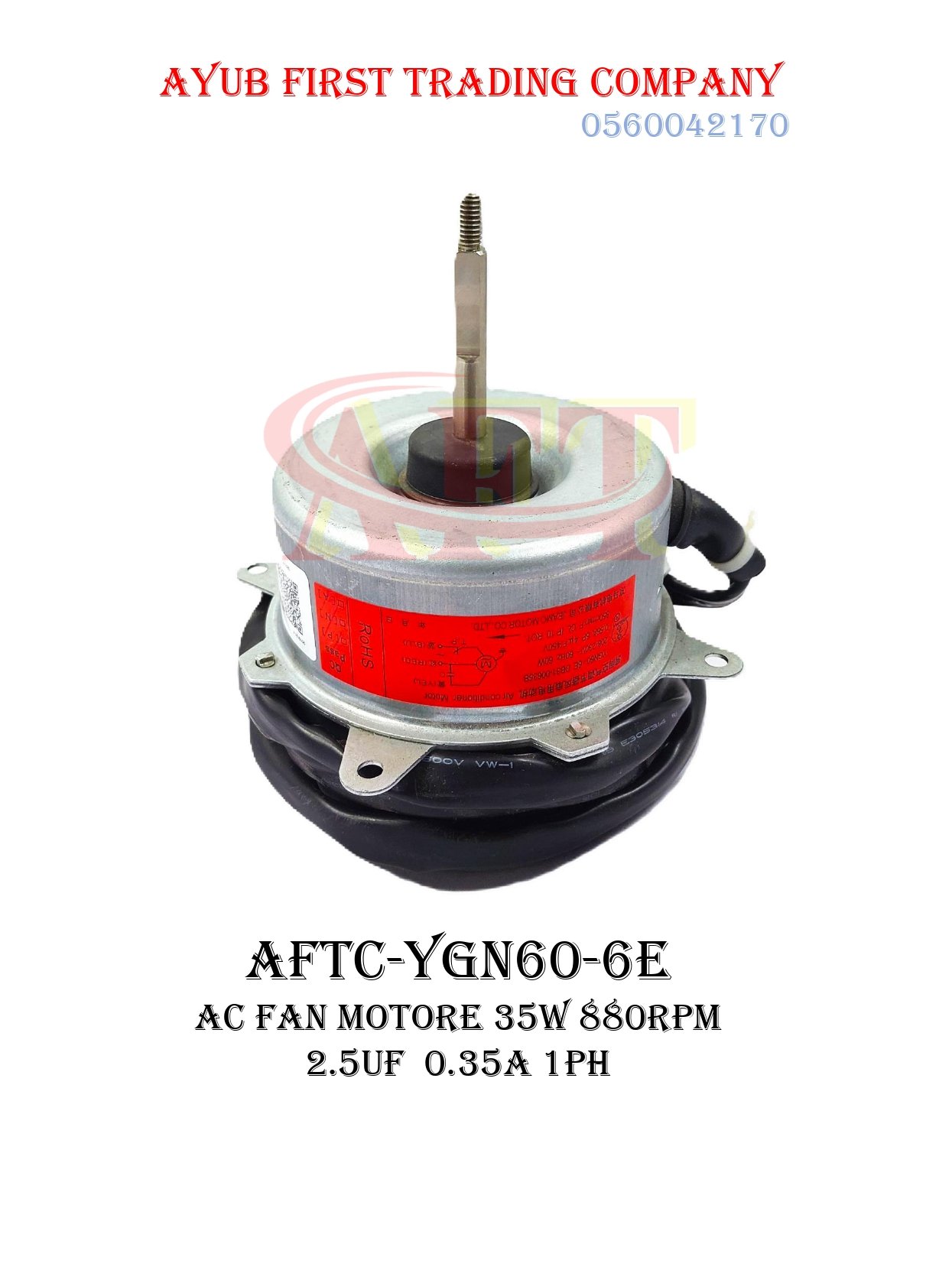

This is an AC Fan Motor with integrated mounting brackets and a stepped flatted/threaded shaft, designed as a replacement fan motor for split air conditioning systems.
Core Identification & Codes
- Product Part Number: AFTC-YGN60-6E
- Model Designation: YGN60-6E
- Compliance Standards: RoHS certified (indicated on the red label)
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 35 Watts (35W)
- Operating Voltage: 208V–230V AC
- Frequency: 50/60 Hz
- Current Draw: 0.35 Amps (0.35A)
- Phase Configuration: 1PH (Single Phase Induction Motor)
- Rotational Speed: 880 RPM
- Insulation Class: Class B / Thermally Protected (T.P.)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 2.5 μF / 370V AC (or 450V AC) run capacitor.
- Rotation Direction: Counter-Clockwise facing the shaft (indicated by the straight arrow on the label schematic pointing left).
Wiring Configuration
According to the schematic wiring diagram on the motor’s red label sticker, the main wire harnesses map out as follows:
- Yellow Wire: Connects directly to one side of the 2.5 μF run capacitor.
- Red Wire: Connects to the opposite side of the run capacitor and taps into Line 1 (Power).
- Blue Wire: Connects directly to Line 2 (Power) through the internal thermal protection circuit.
- Green/Yellow Wire: Dedicated safety chassis grounding line.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is an AC Fan Motor with integrated mounting brackets and a stepped flatted/threaded shaft, designed as a replacement fan motor for split air conditioning systems.
Core Identification & Codes
- Product Part Number: AFTC-YGN60-6E
- Model Designation: YGN60-6E
- Compliance Standards: RoHS certified (indicated on the red label)
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 35 Watts (35W)
- Operating Voltage: 208V–230V AC
- Frequency: 50/60 Hz
- Current Draw: 0.35 Amps (0.35A)
- Phase Configuration: 1PH (Single Phase Induction Motor)
- Rotational Speed: 880 RPM
- Insulation Class: Class B / Thermally Protected (T.P.)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 2.5 μF / 370V AC (or 450V AC) run capacitor.
- Rotation Direction: Counter-Clockwise facing the shaft (indicated by the straight arrow on the label schematic pointing left).
Wiring Configuration
According to the schematic wiring diagram on the motor’s red label sticker, the main wire harnesses map out as follows:
- Yellow Wire: Connects directly to one side of the 2.5 μF run capacitor.
- Red Wire: Connects to the opposite side of the run capacitor and taps into Line 1 (Power).
- Blue Wire: Connects directly to Line 2 (Power) through the internal thermal protection circuit.
- Green/Yellow Wire: Dedicated safety chassis grounding line.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
