60W. 1PH AC Outdoor Fan Motor : AFTC-YGN60-6E-1

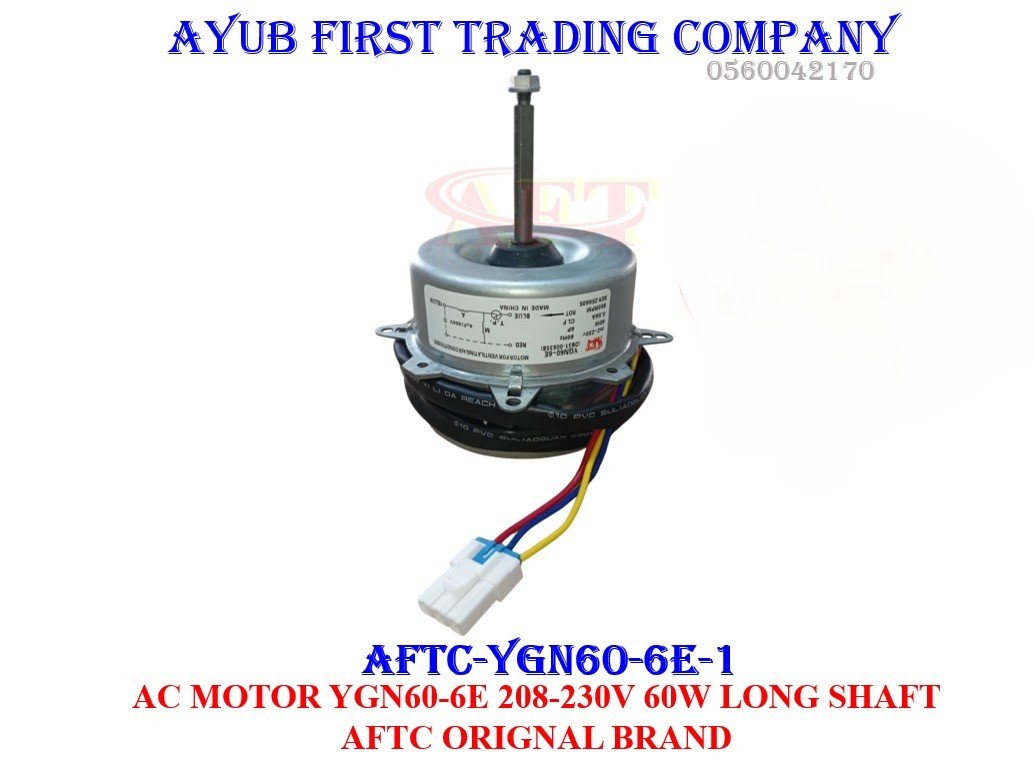

This is an AC Outdoor Fan Motor featuring a long-shaft design and integrated mounting brackets, distributed as part of the AFTC original brand line for residential split air conditioning systems.
Core Identification & Codes
- Product Part Number: AFTC-YGN60-6E-1
- Model Designation: YGN60-6E-1 / YGN60-6E(60NSTA)
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Type: Motor for Ventilating Air Conditioner
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 60 Watts (60W)
- Operating Voltage: 208V–230V AC
- Frequency: 50/60 Hz
- Phase/Configuration: 1PH (Single Phase Induction Motor)
- Insulation Class: CL F (Class F insulation, offering higher temperature resistance than Class B)
- Safety Feature: Thermally Protected (T.P. system with automatic shutdown if overheated)
Capacitor & Rotation Requirements
- Capacitor Rating: Labeled to require a 4.0 μF / 450V AC run capacitor.
- Rotation Direction: Counter-Clockwise facing the shaft (indicated by the straight arrow next to “ROT” pointing left on the sticker schematic).
Wiring Configuration
According to the schematic wiring diagram printed on the motor label, the wires map out as follows:
- Blue Wire: Connects directly to one side of the 4.0 μF run capacitor.
- Red Wire: Connects to the opposite terminal of the run capacitor and bridges directly to Line 1 (Power).
- Yellow Wire: Connects directly to Line 2 (Power) through the internal thermal protection (T.P.) loop.
- Green/Yellow Wire: Separate safety chassis grounding cable.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
