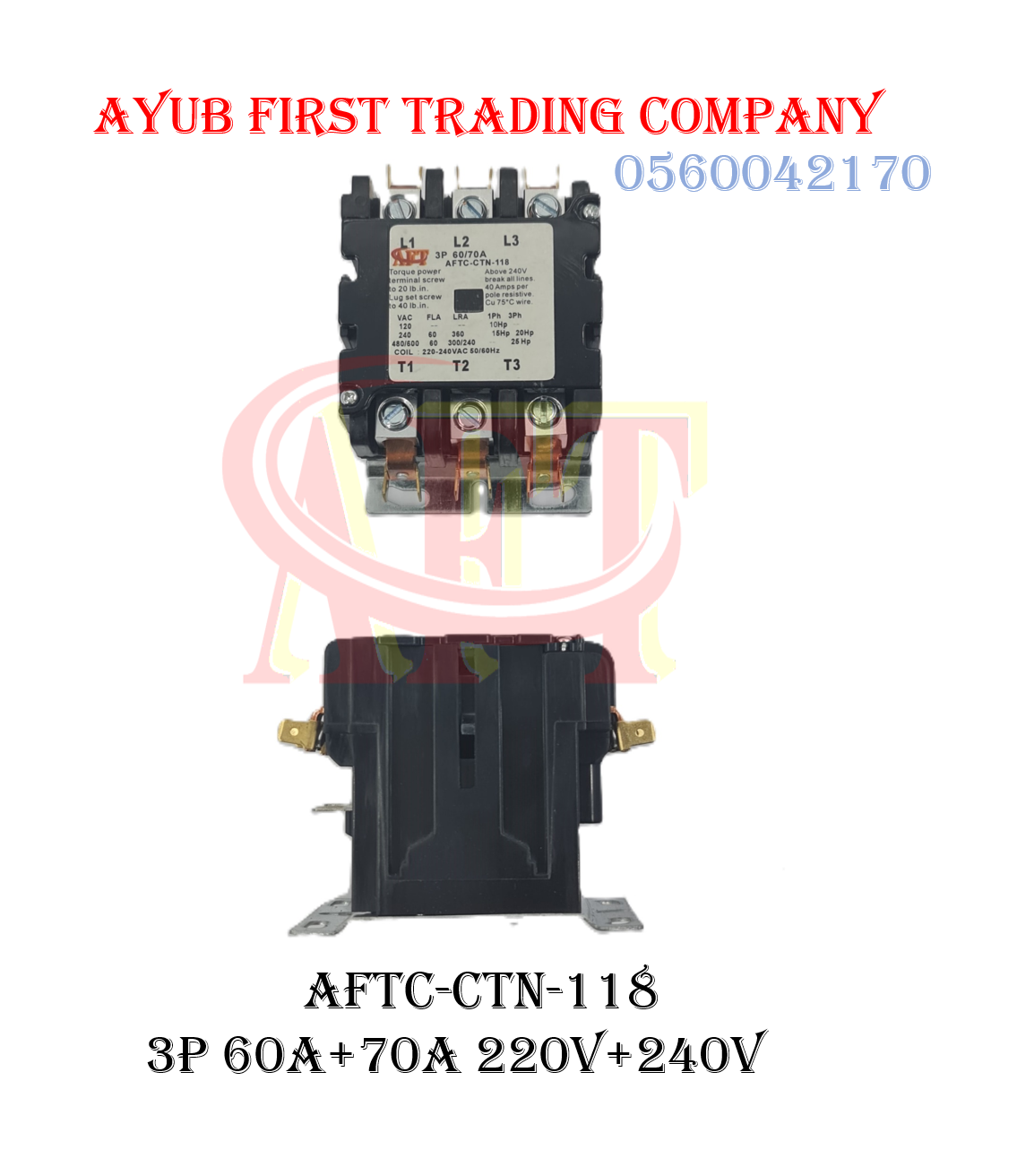

3P, 60 FLA/70A Max 220V – 240V AC CONTACTOR: AFTC-CTN-118
This model introduces a significant leap in power handling, shifting to a heavy-duty industrial scale with a much higher current capacity than previous 3-phase units.
📋 Technical Specifications
- Model Number:
AFTC-CTN-118 - Number of Poles: 3P (Three-pole configuration for large industrial or commercial systems)
- Current Rating: 60 FLA (Full Load Amps) / 70A Max resistive load per pole.
- Control Coil Voltage: 220V – 240V AC at 50/60 Hz (standard line voltage control).
⚡ Horsepower & Load Breakdown
The faceplate parameters detail the massive load and locked rotor amp (LRA) capacities for this industrial model:
- At 240V AC: Handles up to 360 LRA (Locked Rotor Amps).
- 1-Phase Power: Rated up to 15 HP (Horsepower).
- 3-Phase Power: Rated up to 20 HP.
- At 480V / 600V AC: Handles up to 300/240 LRA.
- 3-Phase Power: Rated up to 25 HP.
- At 120V AC:
- 1-Phase Power: Rated up to 10 HP.
🔧 Installation Mechanics
- Terminals: L1, L2, L3 for high-current incoming lines; T1, T2, T3 for heavy motor/machinery output.
- Terminal Screw Torque: 20 lb-in using copper wire (
Cu 75°C wire). - Lug Set Screw Torque: 40 lb-in.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
