65W. AC Fan Motor : AFTC-YDK120-65-6A

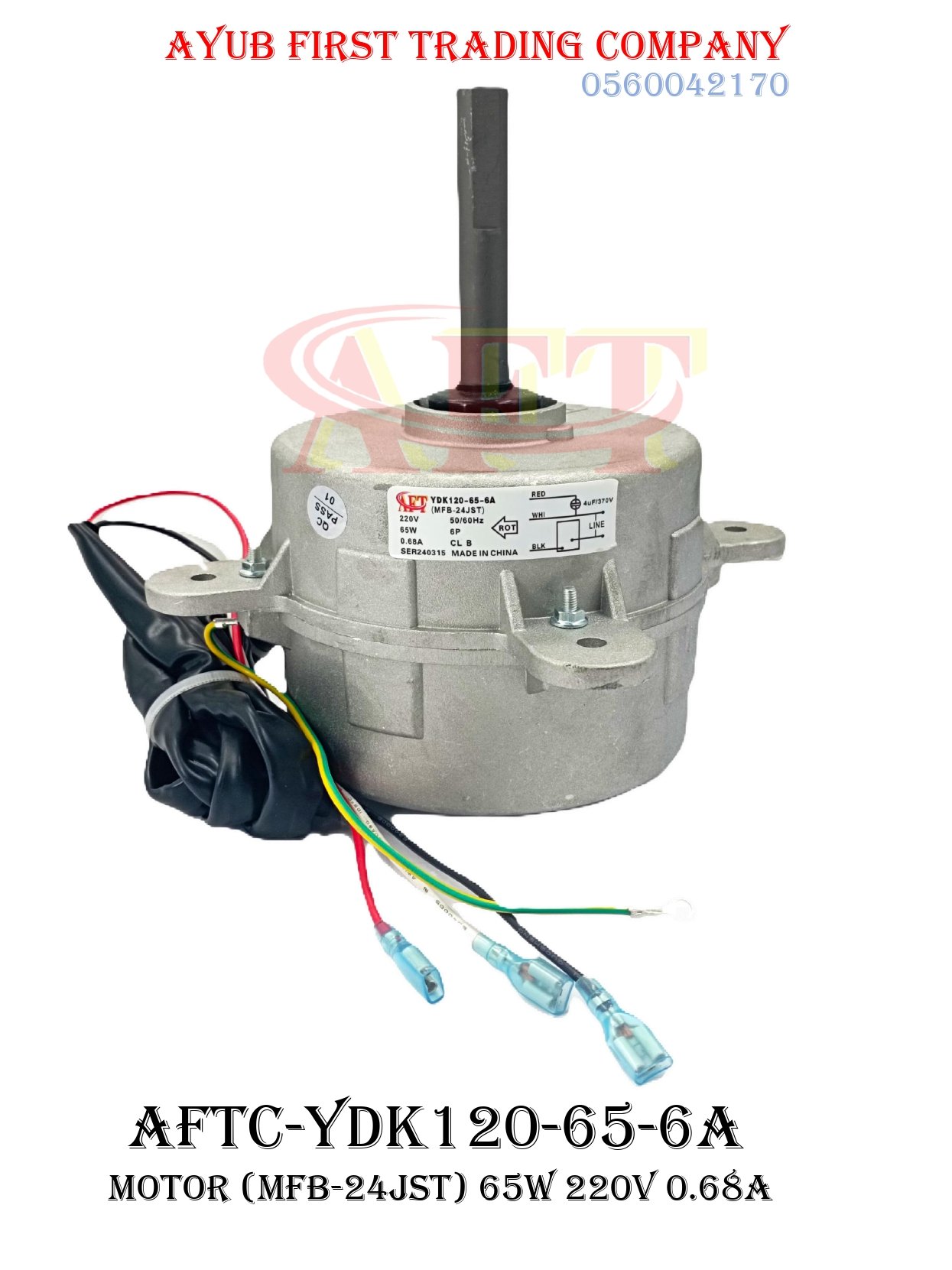

This is an AC Fan Motor with integrated side mounting tabs, primarily used as a replacement outdoor condenser fan motor in split air conditioning systems.
Core Identification & Codes
-
- Product Part Number: AFTC-YDK120-65-6A
- Model Number: YDK120-65-6A (MFB-24JST)
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Serial / Batch Number: SER240315
- Quality Control: QC PASS 01
- Country of Origin: Made in China
Electrical Specifications
-
- Power Consumption: 65 Watts (65W)
- Operating Voltage: 220V AC
- Frequency: 50/60 Hz
- Current Draw: 0.68 Amps (0.68A)
- Motor Poles: 6P (6 Poles, giving a quieter operational speed profile)
- Insulation Class: CL B (Class B insulation)
- Rotation Direction: Clockwise facing the shaft (indicated by the straight arrow next to “ROT” pointing right on the schematic diagram)
Capacitor Requirements
-
- Must be paired with a 4.0 μF / 370V AC run capacitor to start and run properly.
Wiring Configuration
According to the schematic diagram on the motor sticker, the wiring connects as follows:
-
- RED (Red wire): Connects to one terminal of the 4 μF run capacitor.
- WHI (White wire): Connects to the opposite terminal of the run capacitor and maps directly to Line 1 (Power).
- BLK (Black wire): Connects directly to Line 2 (Power).
- Green / Yellow wire: Separate chassis grounding line equipped with a ring terminal.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is an AC Fan Motor with integrated side mounting tabs, primarily used as a replacement outdoor condenser fan motor in split air conditioning systems.
Core Identification & Codes
-
- Product Part Number: AFTC-YDK120-65-6A
- Model Number: YDK120-65-6A (MFB-24JST)
- Serial / Batch Number: SER240315
- Quality Control: QC PASS 01
- Country of Origin: Made in China
Electrical Specifications
-
- Power Consumption: 65 Watts (65W)
- Operating Voltage: 220V AC
- Frequency: 50/60 Hz
- Current Draw: 0.68 Amps (0.68A)
- Motor Poles: 6P (6 Poles, giving a quieter operational speed profile)
- Insulation Class: CL B (Class B insulation)
- Rotation Direction: Clockwise facing the shaft (indicated by the straight arrow next to “ROT” pointing right on the schematic diagram)
Capacitor Requirements
-
- Must be paired with a 4.0 μF / 370V AC run capacitor to start and run properly.
Wiring Configuration
According to the schematic diagram on the motor sticker, the wiring connects as follows:
-
- RED (Red wire): Connects to one terminal of the 4 μF run capacitor.
- WHI (White wire): Connects to the opposite terminal of the run capacitor and maps directly to Line 1 (Power).
- BLK (Black wire): Connects directly to Line 2 (Power).
- Green / Yellow wire: Separate chassis grounding line equipped with a ring terminal.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
