90W 1PH AC Fan Outdoor Motor : AFTC-YDK120/30-6-90B3

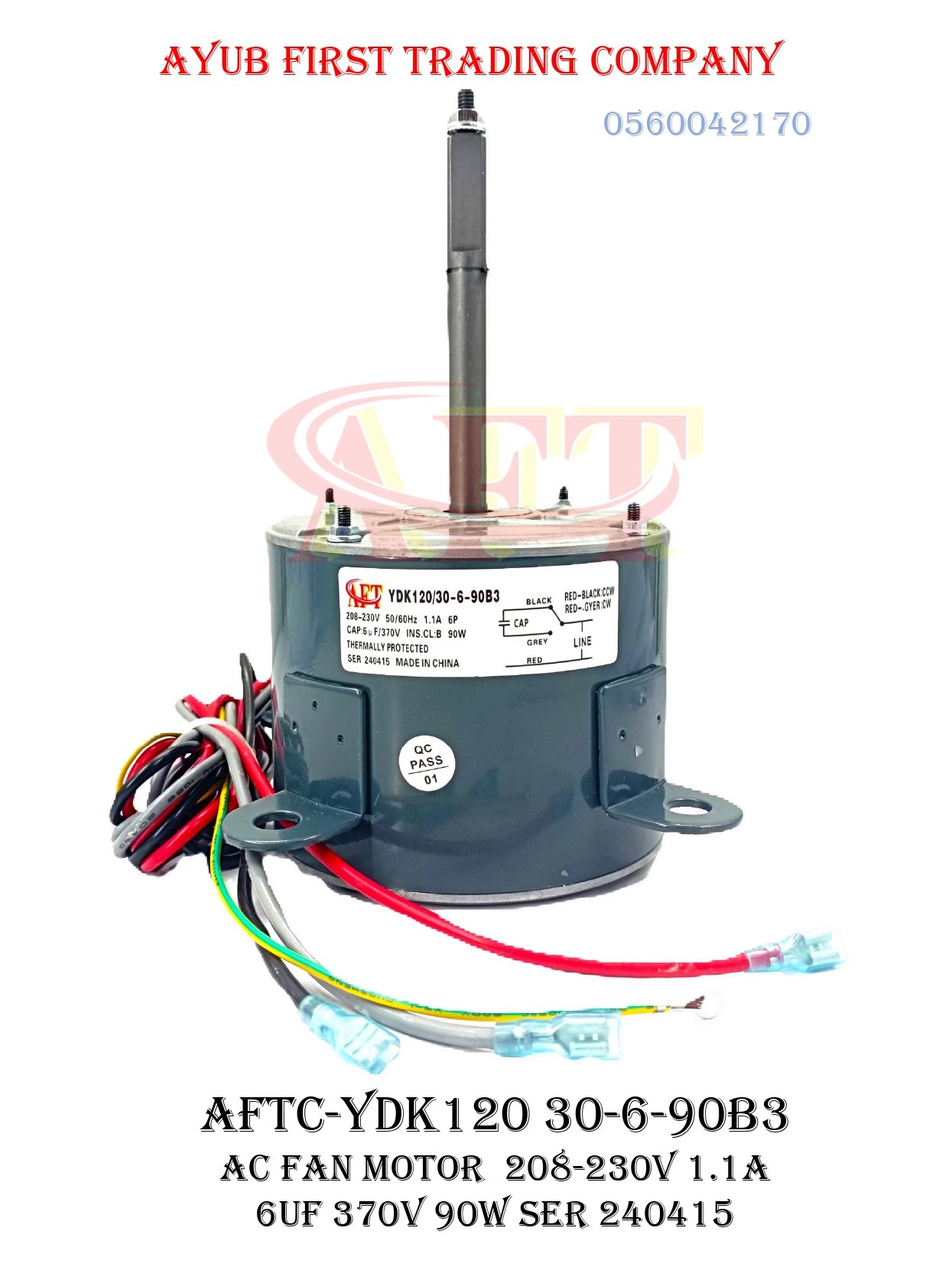

This is an AC Fan Motor featuring an integrated three-ear mounting flange, primarily used as a replacement outdoor condenser fan motor for residential split air conditioning systems. Below are the comprehensive technical details and wiring configurations extracted directly from the product label:
Core Identification & Codes
- Product Part Number: AFTC-YDK120/30-6-90B3
- Model Designation: YDK120/30-6-90B3
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Serial / Batch Number: SER 240415
- Quality Control: QC PASS 01
- Country of Origin: Made in China
Electrical Specifications
- Power Output: 90 Watts (90W)
- Operating Voltage: 208V–230V AC
- Frequency: 50/60 Hz
- Phase Configuration: 1PH (Single-Phase Induction Motor)
- Current Draw: 1.1 Amps (1.1A)
- Motor Poles: 6P (6 Poles)
- Insulation Rating: INS.CL: B (Class B insulation)
- Safety Feature: Thermally Protected (T.P. system with automatic reset if it overheats)
Capacitor & Rotation Reversibility
- Capacitor Requirement: Must be paired with a 6.0 μF / 370V AC run capacitor.
- Rotation Direction: REVERSIBLE (Can be configured for Clockwise or Counter-Clockwise rotation based on how the directional lead wires are connected).
Wiring Connection Diagram
The label features a dual-setup wiring schematic to control the physical rotation direction:
- Main Power & Capacitor Lines:
- Black Wire: Connected directly to one side of the 6.0 μF Capacitor.
- Grey Wire: Connected to the opposite side of the Capacitor and tapped into the Line (Power) feed.
- Red Wire: Connected directly to the alternate Line (Power) feed.
- Rotation Direction Control (Wire Matching):
- Counter-Clockwise (CCW) Rotation: Connect Red wire to Black wire.
- Clockwise (CW) Rotation: Connect Red wire to Grey wire.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
