68 W 900 RPM AC Outdoor Fan Motor : AFTC-YDK68-6B5
This is an AC Fan Motor featuring an integrated 4-screw mounting flange, designed primarily as a replacement indoor or outdoor blower motor for residential air conditioning units.
Core Identification & Codes
- Product Model: AFTC-YDK68-6B5
- Base Model Cross-Reference: YDK68-6B5
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Country of Origin: Made in China
Electrical Specifications
- Power Output: 68 Watts (68W)
- Operating Voltage: 208–230V AC
- Frequency: 60 Hz
- Phase: 1PH (Single Phase)
- Current Draw: 0.6 Amps (0.6A)
- Rotational Speed: 900 RPM
- Insulation Class: Class B (INS.CL:B)
- Safety Feature: Thermally Protected (Internal switch cuts power automatically if it overheats)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 4 μF / 450V AC run capacitor.
- Rotation Direction: CCW-SE (Counter-Clockwise facing the Shaft End), also verified by the curved “ROT” arrow pointing counter-clockwise on the label schematic.

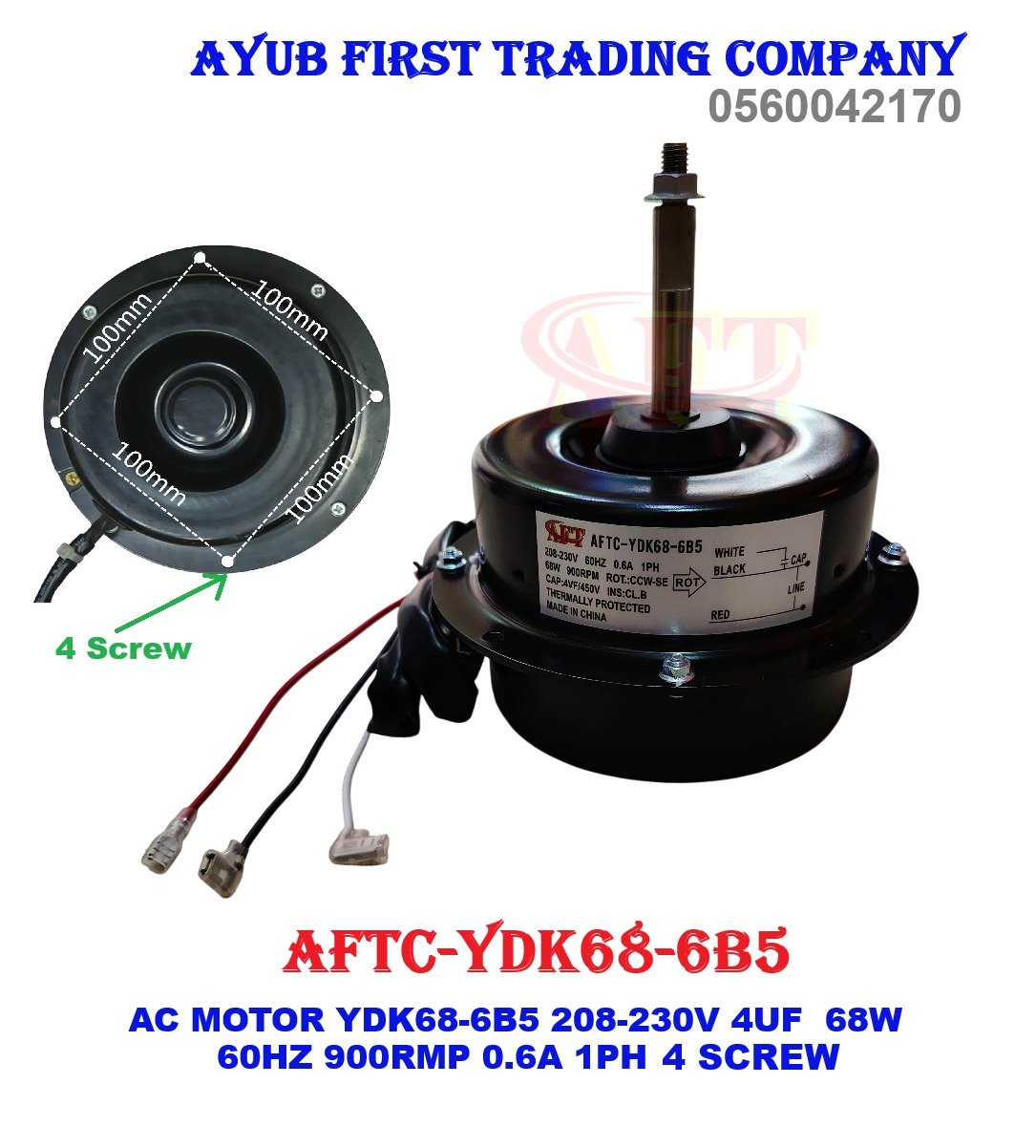

Physical & Mounting Dimensions
- Mounting Pattern: Integrated flange with a 4-screw configuration.
- Spacing: 100mm between each adjacent screw hole, forming a perfect square pattern for secure mounting to the bracket housing.
Wiring Configuration
According to the schematic diagram on the motor casing, the primary wiring connections map out as follows:
- White: Capacitor Lead (CAP)
- Black: Connected to both the Capacitor and the Line/Power source (CAP + LINE)
- Red: Direct Line/Power connection
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
