68 W 840 RPM AC Outdoor Fan Motor : AFTC-68-6L

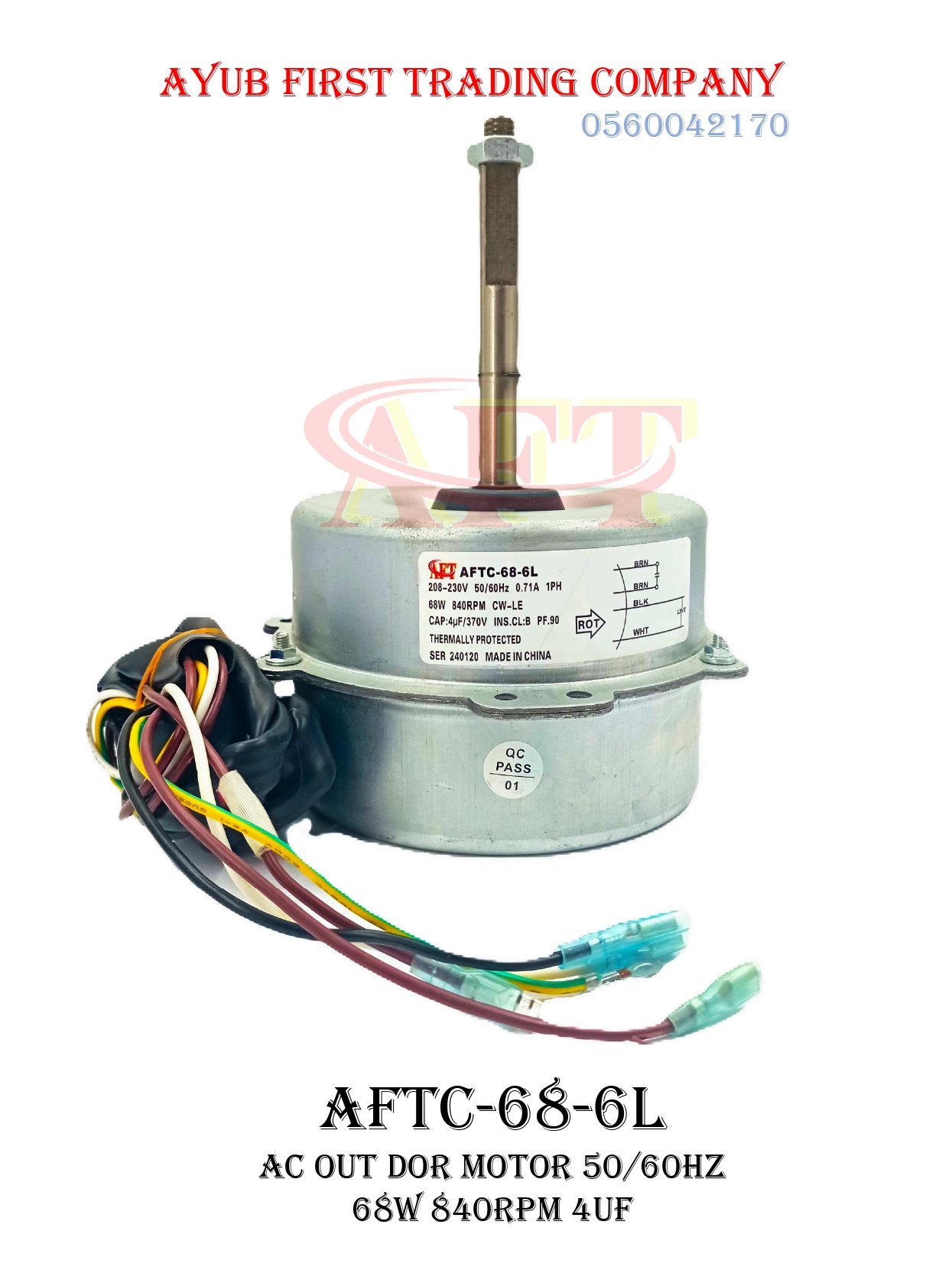

This is an AC Outdoor Fan Motor designed as a replacement part for residential air conditioning condenser units.
Core Identification & Codes
-
- Product Model: AFTC-68-6L
- Application Description: AC Out Dor Motor (Outdoor Condenser Fan Motor)
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Serial Number (SER): 240120
- Country of Origin: Made in China
Electrical Specifications
-
- Power Output: 68 Watts (68W)
- Operating Voltage: 208–230V AC
- Frequency: 50/60 Hz
- Phase: 1PH (Single Phase)
- Current Draw: 0.71 Amps (0.71A)
- Rotational Speed: 840 RPM
- Power Factor (PF): 0.90
- Insulation Class: Class B (INS.CL:B)
- Safety Feature: Thermally Protected (Internal switch automatically cuts power if the unit overheats)
Capacitor & Rotation Requirements
-
- Capacitor Rating: Requires a 4 μF / 370V AC run capacitor.
- Rotation Direction: CW-LE (Clockwise facing the Lead End), also verified by the curved “ROT” arrow pointing clockwise on the label schematic.
Wiring Configuration
According to the schematic diagram on the motor casing, the multi-wire connection layout maps out as follows:
- Brown (BRN): Capacitor Lead (CAP)
- Brown (BRN with white stripe or paired loop): Connected to both the Capacitor and the Line/Power source (CAP + LINE)
- Black (BLK): Direct Line/Power connection
- White (WHT): Neutral / Common Line connection.
- 📞 Contact & Procurement DetailsTo secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is an AC Outdoor Fan Motor designed as a replacement part for residential air conditioning condenser units.
Core Identification & Codes
-
- Product Model: AFTC-68-6L
- Application Description: AC Out Dor Motor (Outdoor Condenser Fan Motor)
- Serial Number (SER): 240120
- Country of Origin: Made in China
Electrical Specifications
-
- Power Output: 68 Watts (68W)
- Operating Voltage: 208–230V AC
- Frequency: 50/60 Hz
- Phase: 1PH (Single Phase)
- Current Draw: 0.71 Amps (0.71A)
- Rotational Speed: 840 RPM
- Power Factor (PF): 0.90
- Insulation Class: Class B (INS.CL:B)
- Safety Feature: Thermally Protected (Internal switch automatically cuts power if the unit overheats)
Capacitor & Rotation Requirements
-
- Capacitor Rating: Requires a 4 μF / 370V AC run capacitor.
- Rotation Direction: CW-LE (Clockwise facing the Lead End), also verified by the curved “ROT” arrow pointing clockwise on the label schematic.
Wiring Configuration
According to the schematic diagram on the motor casing, the multi-wire connection layout maps out as follows:
- Brown (BRN): Capacitor Lead (CAP)
- Brown (BRN with white stripe or paired loop): Connected to both the Capacitor and the Line/Power source (CAP + LINE)
- Black (BLK): Direct Line/Power connection
- White (WHT): Neutral / Common Line connection.
- 📞 Contact & Procurement DetailsTo secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
