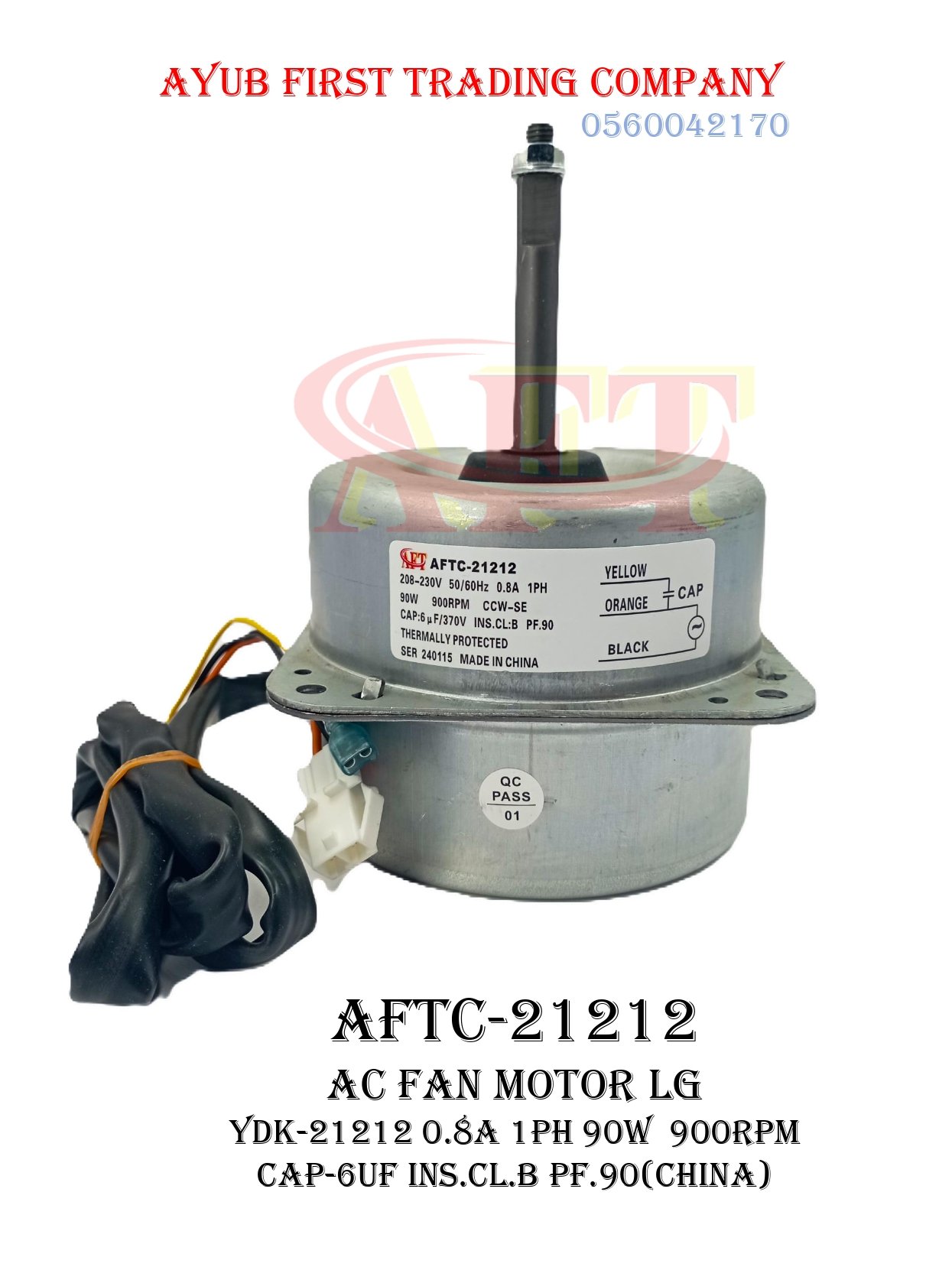

90 W 900 RPM AC Outdoor Fan Motor : AFTC-21212
This is an AC Fan Motor designed as a replacement part for LG residential air conditioning systems or similar cooling units.
Core Identification & Codes
- Product Model: AFTC-21212
- Cross-Reference Model: YDK-21212
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Serial Number (SER): 240115
- Country of Origin: Made in China
Electrical Specifications
- Power Output: 90 Watts
- Operating Voltage: 208–230V AC
- Frequency: 50/60 Hz
- Phase: 1PH (Single Phase)
- Current Draw: 0.8 Amps
- Rotational Speed: 900 RPM
- Power Factor (PF): 0.90
- Insulation Class: Class B (INS.CL:B)
- Safety Feature: Thermally Protected (Internal switch automatically cuts power to prevent burning if over-heated)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 6 μF / 370V AC run capacitor.
- Rotation Direction: CCW-SE (Counter-Clockwise facing the Shaft End), also indicated by the curved “ROT” arrow pointing counter-clockwise on the label schematic.
Wiring Configuration
According to the diagram on the casing label, the primary wiring connections map out as follows:
- Yellow: Power / Line 1 connection
- Orange: Capacitor Lead (CAP)
- Black: Power / Line 2 connection (via the internal thermal protection loop)
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
