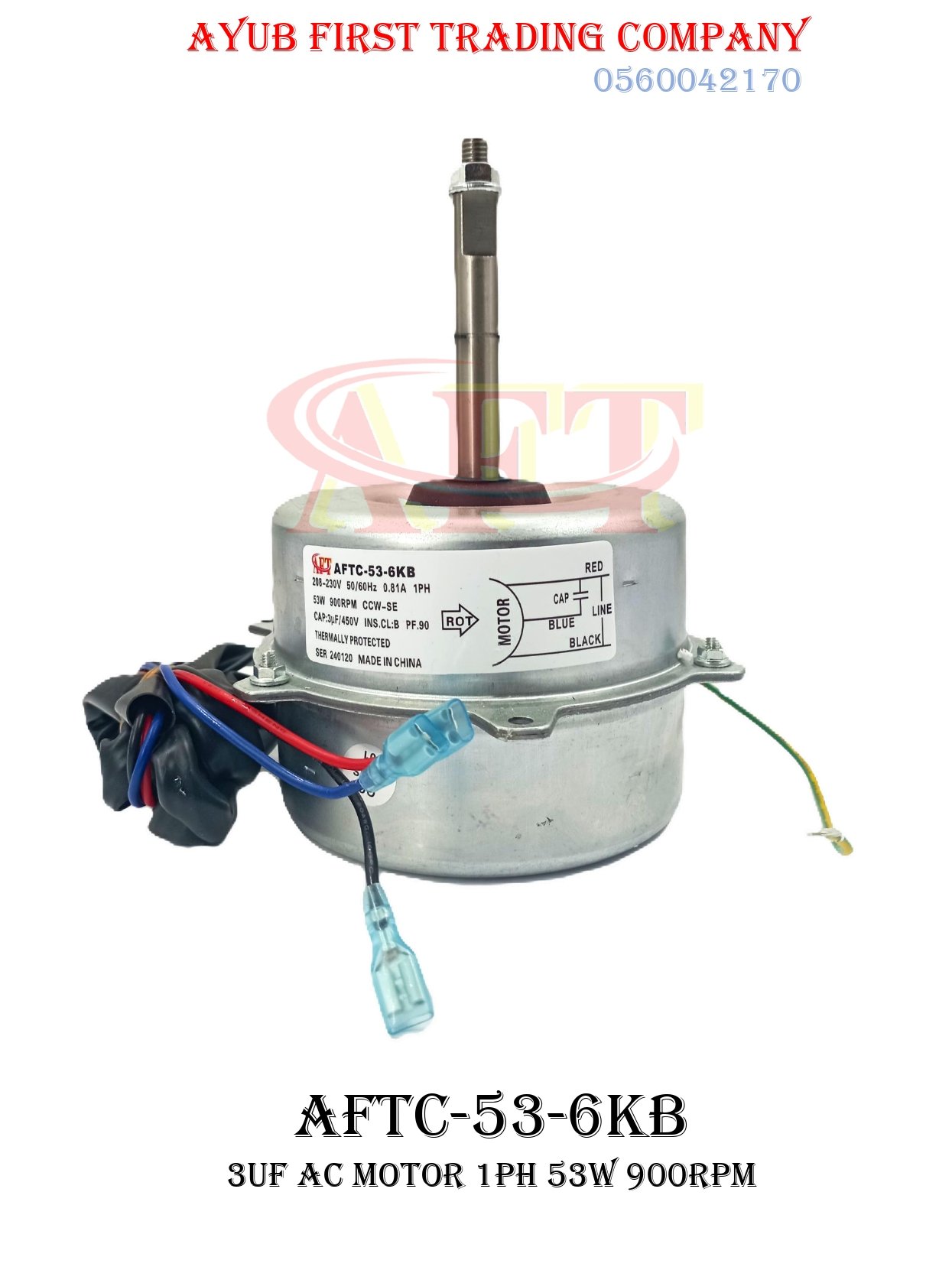

53 W 900 RPM AC Outdoor Fan Motor : AFTC-53-6KB
his is an AC Fan Motor designed as a replacement part for residential air conditioning systems and heat pump condenser units.
Core Identification & Codes
- Product Model: AFTC-53-6KB
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Serial Number (SER): 240120
- Country of Origin: Made in China
Electrical Specifications
- Power Output: 53 Watts (53W)
- Operating Voltage: 208–230V AC
- Frequency: 50/60 Hz
- Phase: 1PH (Single Phase)
- Current Draw: 0.81 Amps (0.81A)
- Rotational Speed: 900 RPM
- Power Factor (PF): 0.90
- Insulation Class: Class B (INS.CL:B)
- Safety Feature: Thermally Protected (Internal switch automatically cuts power if the unit overheats)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 3 μF / 450V AC run capacitor.
- Rotation Direction: CCW-SE (Counter-Clockwise facing the Shaft End), also verified by the curved “ROT” arrow pointing counter-clockwise on the label schematic.
Wiring Configuration
According to the schematic diagram on the motor casing, the wiring connections map out as follows:
- Red: Capacitor Lead (CAP)
- Blue: Connected to the Capacitor and the Line/Power source (CAP + LINE)
- Black: Direct Line/Power connection
- Green/Yellow (Separate wire): Ground wire with eyelet terminal for chassis grounding
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
