90W. 790 RPM Gree AC Fan Motor : AFTC-YY090-1208P-LW125D

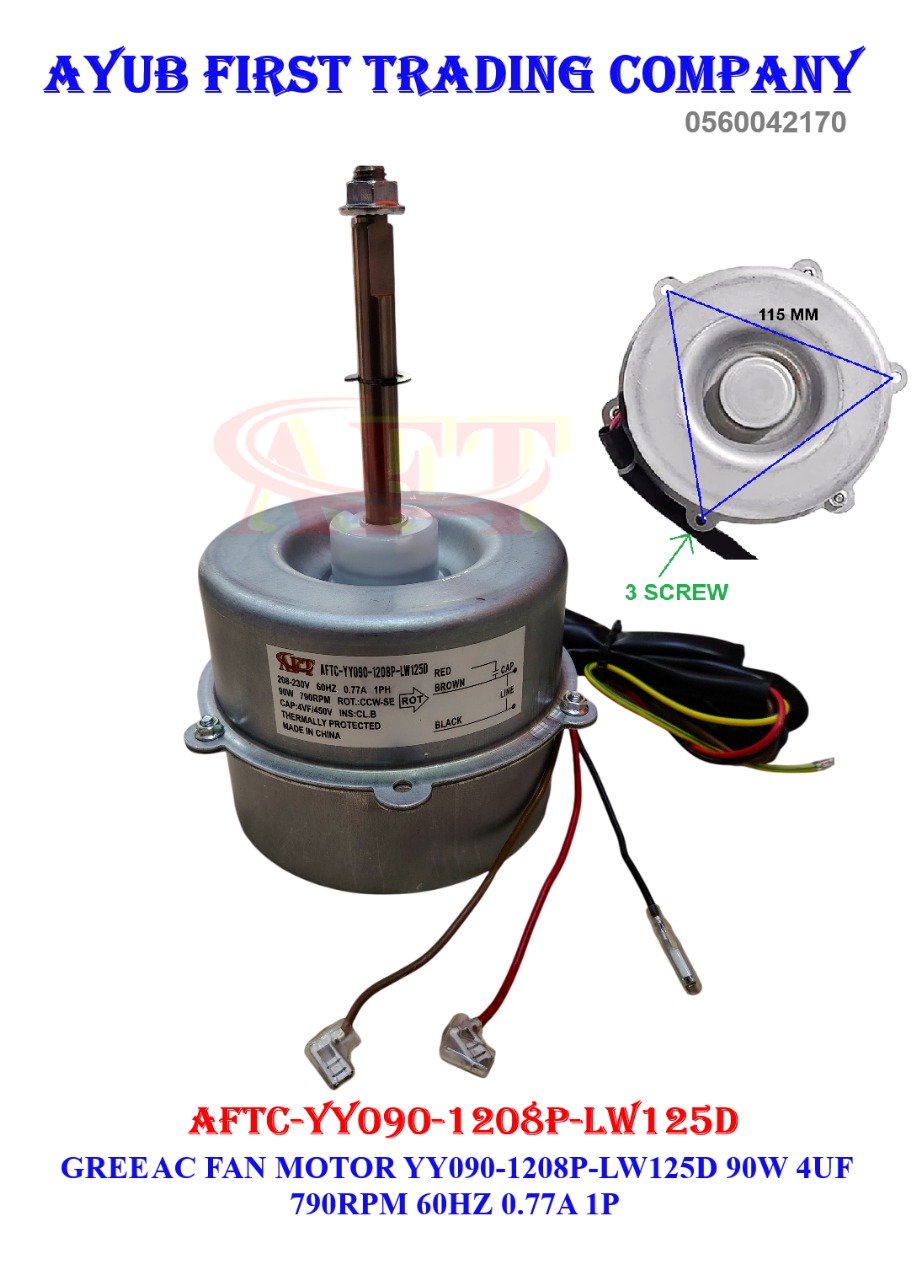

This is an AC Fan Motor featuring a 3-screw triangular mounting bracket configuration, primarily manufactured as a replacement outdoor condenser fan motor for Gree Air Conditioners and compatible split units.
Core Identification & Codes
- Product Part Number: AFTC-YY090-1208P-LW125D
- Model Designation: YY090-1208P-LW125D
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Application: Gree AC Fan Motor
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 90 Watts (90W)
- Operating Voltage: 208V–230V AC
- Frequency: 60 Hz
- Current Draw: 0.77 Amps (0.77A)
- Phase Configuration: 1PH (Single Phase Induction Motor)
- Rotational Speed: 790 RPM
- Insulation Class: INS.CL: B (Class B insulation)
- Safety Feature: Thermally Protected (T.P. system with automatic reset if overheated)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 4.0 μF / 450V AC run capacitor.
- Rotation Direction: CCW-SE (Counter-Clockwise facing the Shaft End), also verified by the arrow pointing left next to “ROT”.
Physical & Mounting Dimensions
- Mounting Setup: Rear-mounted triangular flange bracket with 3 screw holes.
- Mounting Pitch: Measures exactly 115 mm diagonally between the screw holes.
Wiring Configuration
According to the schematic wiring diagram printed on the motor label sticker, the wires connect as follows:
- RED: Connects directly to one side of the 4.0 μF run capacitor (CAP).
- BROWN: Connects to the opposite terminal of the run capacitor and bridges directly to Line 1 (Power).
- BLACK: Connects directly to Line 2 (Power).
- Green / Yellow wire: Separate safety chassis grounding wire equipped with a ring terminal.
