Bolt Square Flanged Bearing Unit: AFTC-SUC205 / 3UCF205D1 4

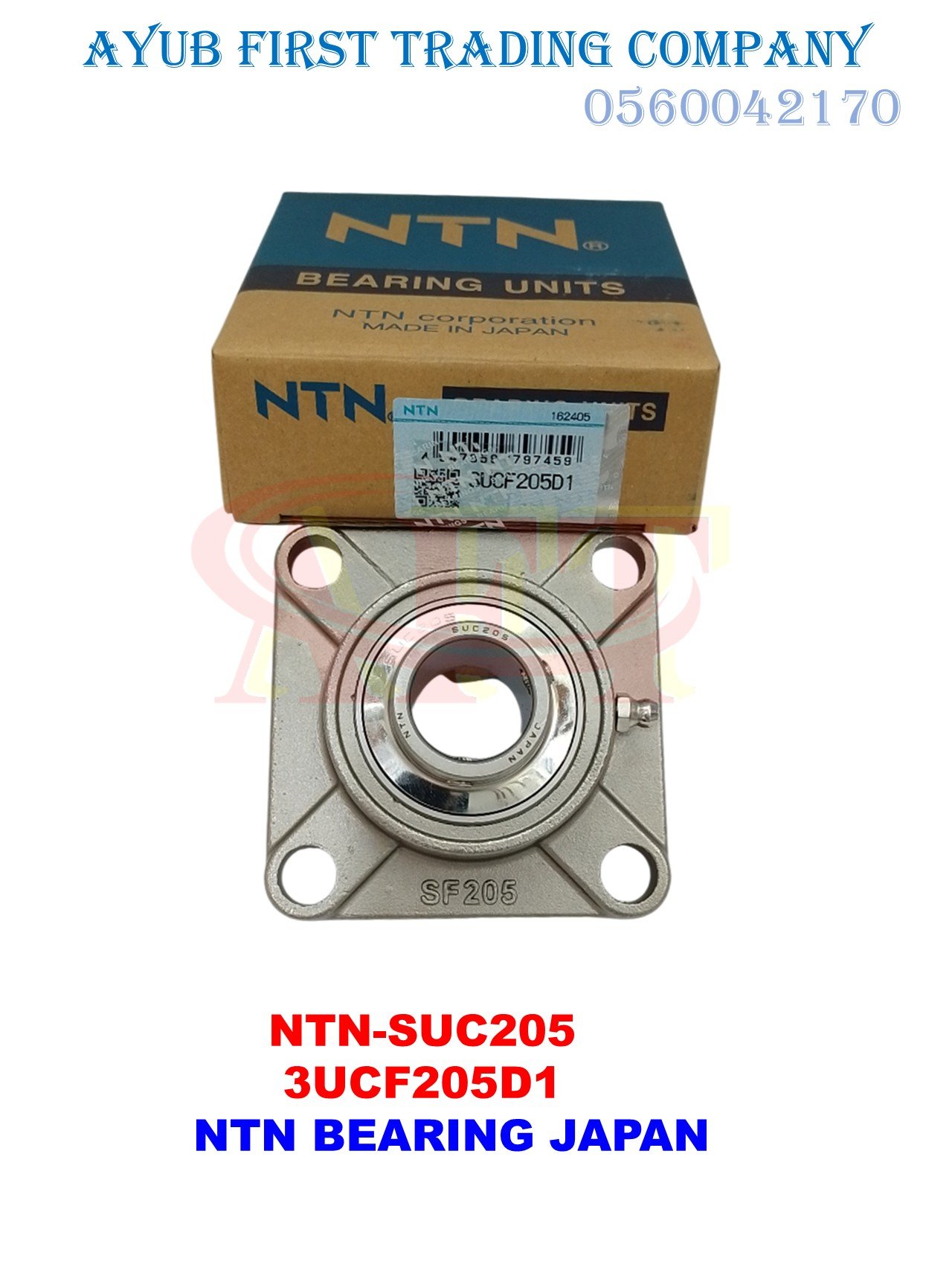

The product in the image is an Bolt Square Flanged Bearing Unit: AFTC-SUC205 / 3UCF205D1 4-, an essential replacement component for food processing equipment, chemical packaging machinery, conveyor systems, and maritime applications. It is engineered with premium corrosion-resistant materials by NTN Corporation, Japan.
🔍 Technical Specifications
- Model Number: AFTC-SUC205 / 3UCF205D1
- Manufacturer Part Number: NTN SUCF205 / S-UCF205D1
- Bearing Unit Type: 4-Bolt Square Flanged Housing Unit
- Shaft Bore Diameter (Inner d): 25 mm
- Housing Dimensions (L x L): 95 mm x 95 mm
- Bolt Hole Pitch (J): 70 mm
- Basic Dynamic Load Rating (\(C_{r}\)): 14,000 N (14.00 kN)
- Basic Static Load Rating (\(C_{0r}\)): 7,850 N (7.85 kN)
⚙️ Design & Features
- High-Grade Stainless Steel Construction (SUC/SF Prefix): Formed from premium stainless steel components to provide exceptional defense against water corrosion, harsh chemical washdowns, and chemical oxidization.
- 4-Bolt Square Flange Layout (SF205): Features a heavy-duty casting that distributes heavy mechanical loads evenly over four structural anchor points, ensuring high rigidity and structural stability.
- Self-Aligning Internal Bearing: Features a spherically ground outer ring paired with a matching inner housing channel to automatically correct angular shaft misalignments during setup or running stresses.
- Secure Set-Screw Locking Collar: Equipped with structural dual set screws positioned on the inner ring extension to grip the driving shaft tightly, preventing slippage under heavy rotational vibrations.
- Integrated Slideway Grease Zerk: Completed with an accessible side grease fitting to allow for simple relubrication cycles to wash out debris and renew internal lubrication safely.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
Description
Description
The product in the image is an Bolt Square Flanged Bearing Unit: AFTC-SUC205 / 3UCF205D1 4-, an essential replacement component for food processing equipment, chemical packaging machinery, conveyor systems, and maritime applications. It is engineered with premium corrosion-resistant materials by NTN Corporation, Japan.
🔍 Technical Specifications
- Model Number: AFTC-SUC205 / 3UCF205D1
- Manufacturer Part Number: NTN SUCF205 / S-UCF205D1
- Bearing Unit Type: 4-Bolt Square Flanged Housing Unit
- Shaft Bore Diameter (Inner d): 25 mm
- Housing Dimensions (L x L): 95 mm x 95 mm
- Bolt Hole Pitch (J): 70 mm
- Basic Dynamic Load Rating (\(C_{r}\)): 14,000 N (14.00 kN)
- Basic Static Load Rating (\(C_{0r}\)): 7,850 N (7.85 kN)
⚙️ Design & Features
- High-Grade Stainless Steel Construction (SUC/SF Prefix): Formed from premium stainless steel components to provide exceptional defense against water corrosion, harsh chemical washdowns, and chemical oxidization.
- 4-Bolt Square Flange Layout (SF205): Features a heavy-duty casting that distributes heavy mechanical loads evenly over four structural anchor points, ensuring high rigidity and structural stability.
- Self-Aligning Internal Bearing: Features a spherically ground outer ring paired with a matching inner housing channel to automatically correct angular shaft misalignments during setup or running stresses.
- Secure Set-Screw Locking Collar: Equipped with structural dual set screws positioned on the inner ring extension to grip the driving shaft tightly, preventing slippage under heavy rotational vibrations.
- Integrated Slideway Grease Zerk: Completed with an accessible side grease fitting to allow for simple relubrication cycles to wash out debris and renew internal lubrication safely.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
