Bolt Pillow Block Bearing Unit: AFTC-UCP206 2

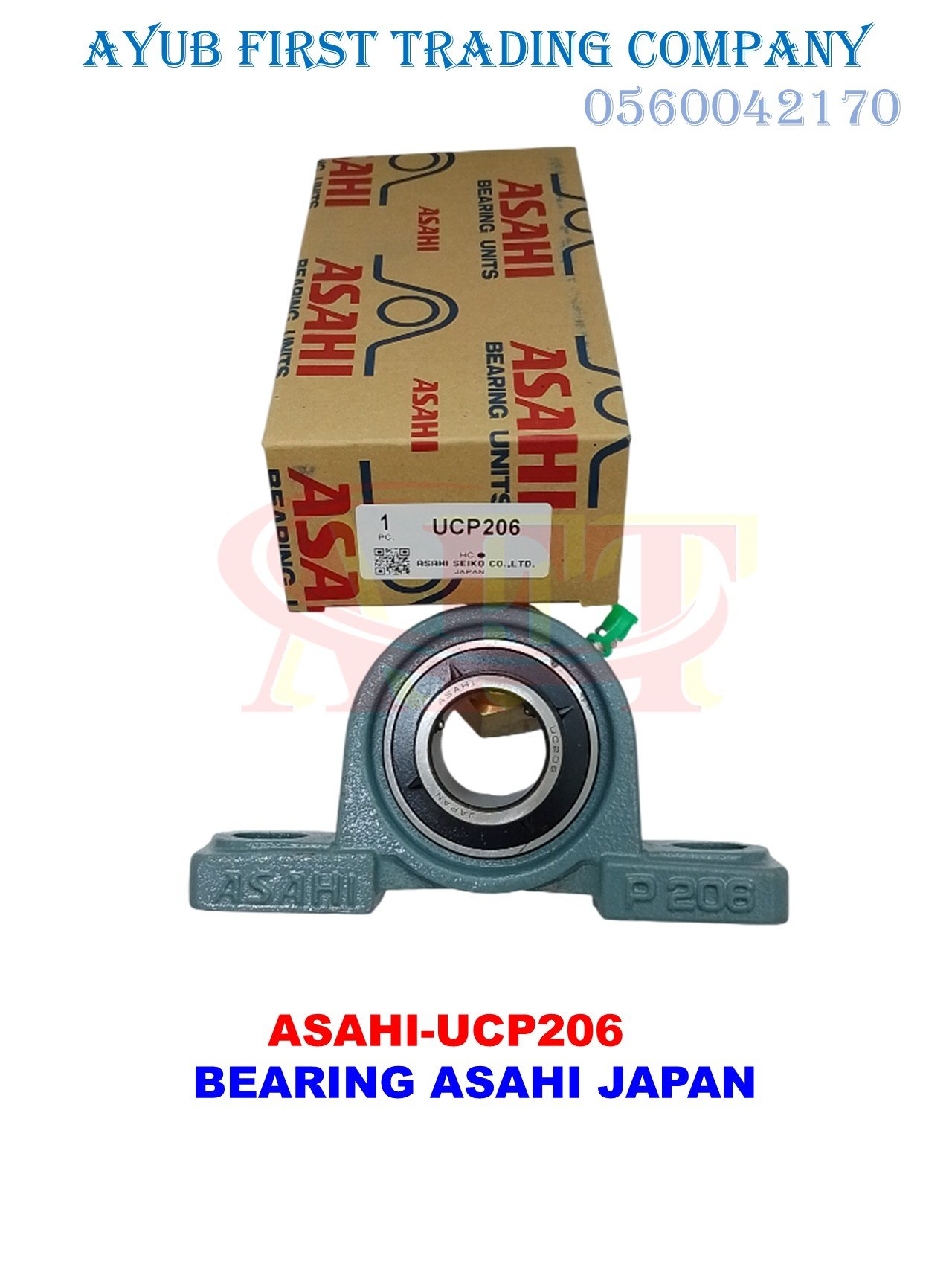

The product in the image is an Bolt Pillow Block Bearing Unit: AFTC-UCP206 2 , an essential replacement component for agricultural machinery, conveyor systems, packaging equipment, and industrial fans. It is manufactured under high-precision industrial standards by Asahi Seiko Co., Ltd., Japan.
🔍 Technical Specifications
- Model Number: AFTC-UCP206
- Manufacturer Part Number: Asahi UCP206
- Bearing Unit Type: 2-Bolt Pillow (Plummer) Block Unit
- Shaft Bore Diameter (Inner d): 30 mm
- Center Height (Base to Shaft Center H): 42.9 mm
- Overall Housing Length (L): 165 mm
- Bolt Hole Pitch (J): 121 mm
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 19,500 N (19.50 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 11,300 N (11.30 kN)
⚙️ Design & Features
- Sturdy Rigid Cast Iron Housing (P206): Manufactured from premium single-piece cast iron to ensure rigid support, maximum resistance to structural deformation, and vibration-dampening capabilities under tough loads.
- Spherical Self-Aligning Insert (UC206): Features a spherically ground outer ring paired with a matching curved housing seat to automatically correct angular shaft misalignments during operation.
- Double-Layer High-Efficiency Seals: Configured with a robust synthetic rubber contact seal integrated with a steel slinger to firmly shield against dirt, dust, and moisture ingress while retaining internal grease.
- Dual Set-Screw Locking Mechanism: Employs two set-screws positioned at a 120-degree angle on the extended inner ring to establish a tight grip on the shaft, minimizing slippage under alternating rotations.
- Accessible Relubrication Zerk: Fully equipped with a standard top grease fitting to allow for easy operational relubrication cycles to wash out contaminants and maintain rolling smooth execution.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
Description
Description
The product in the image is an Bolt Pillow Block Bearing Unit: AFTC-UCP206 2 , an essential replacement component for agricultural machinery, conveyor systems, packaging equipment, and industrial fans. It is manufactured under high-precision industrial standards by Asahi Seiko Co., Ltd., Japan.
🔍 Technical Specifications
- Model Number: AFTC-UCP206
- Manufacturer Part Number: Asahi UCP206
- Bearing Unit Type: 2-Bolt Pillow (Plummer) Block Unit
- Shaft Bore Diameter (Inner d): 30 mm
- Center Height (Base to Shaft Center H): 42.9 mm
- Overall Housing Length (L): 165 mm
- Bolt Hole Pitch (J): 121 mm
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 19,500 N (19.50 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 11,300 N (11.30 kN)
⚙️ Design & Features
- Sturdy Rigid Cast Iron Housing (P206): Manufactured from premium single-piece cast iron to ensure rigid support, maximum resistance to structural deformation, and vibration-dampening capabilities under tough loads.
- Spherical Self-Aligning Insert (UC206): Features a spherically ground outer ring paired with a matching curved housing seat to automatically correct angular shaft misalignments during operation.
- Double-Layer High-Efficiency Seals: Configured with a robust synthetic rubber contact seal integrated with a steel slinger to firmly shield against dirt, dust, and moisture ingress while retaining internal grease.
- Dual Set-Screw Locking Mechanism: Employs two set-screws positioned at a 120-degree angle on the extended inner ring to establish a tight grip on the shaft, minimizing slippage under alternating rotations.
- Accessible Relubrication Zerk: Fully equipped with a standard top grease fitting to allow for easy operational relubrication cycles to wash out contaminants and maintain rolling smooth execution.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
