DFS-7F5A. Washing Machine Clutch Gearbox: DFS-005
This is the DFS-005 Washing Machine Clutch Gearbox (reducer), specifically designed for Top-Load Fully Automatic washing machines with a large mounting footprint.
Technical Specifications

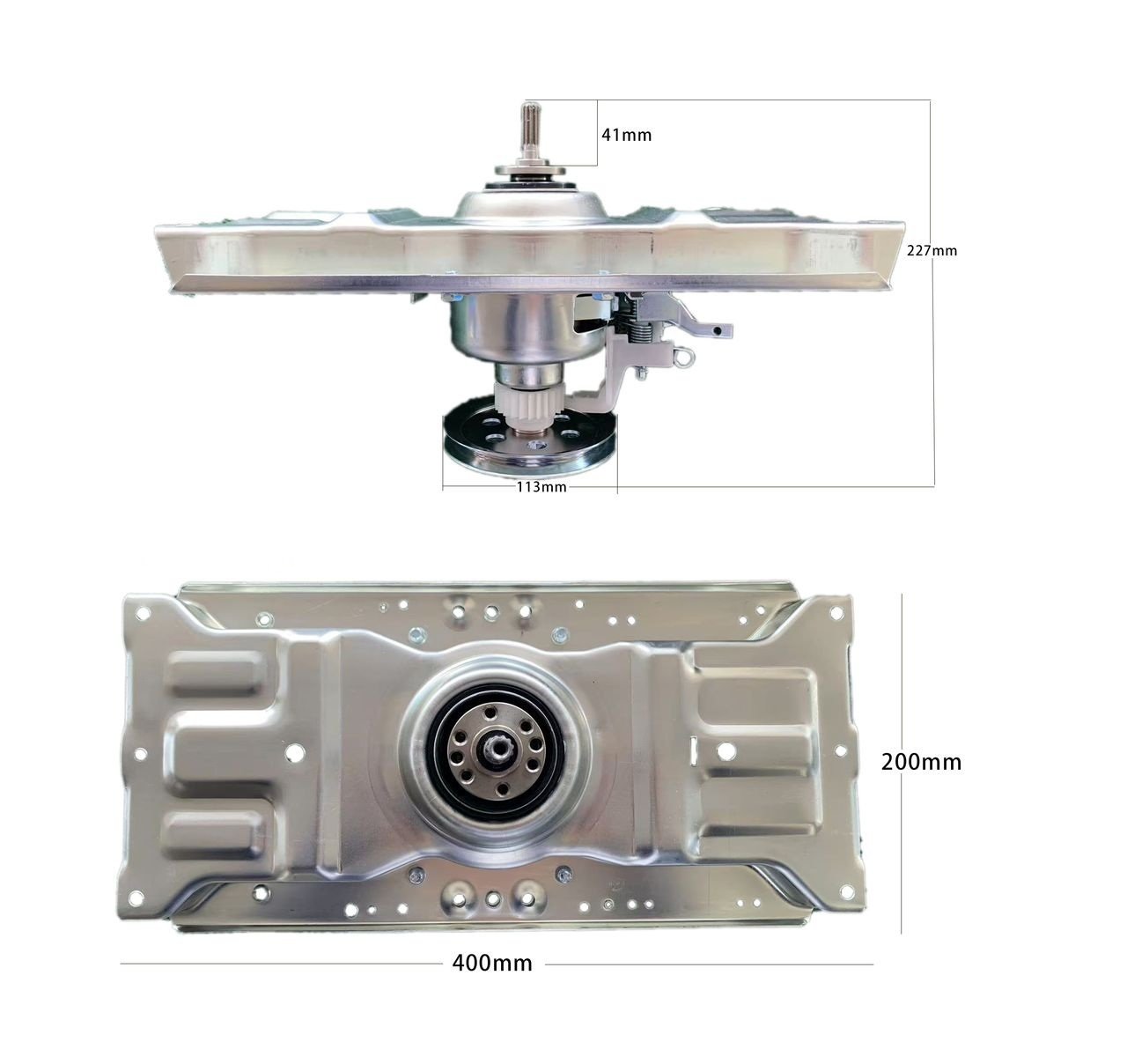

Based on the engineering measurements in the image:
- Mounting Plate: Measures 400mm in length and 200mm in width.
- Overall Height: The unit has a total vertical height of 227mm.
- Top Shaft Length: The upper drive shaft is 41mm long.
- Base Pulley Diameter: The bottom belt pulley has a diameter of 113mm.
- Model Number: DFS-7F5A (DFS-005).
Functional Details
- Mechanism: This is a Double Gear (Twin Gear) assembly, which provides more stable torque for heavier laundry loads compared to single-gear models.
- Compatibility: This large “Full Plate” design is commonly used in high-capacity top-loaders from brands like Sharp, Midea, and Samsung, depending on the specific model year.
- Material: It features a durable, corrosion-resistant silver-tone metal housing built for heavy-duty daily use.
Description
Description
This is the DFS-005 Washing Machine Clutch Gearbox (reducer), specifically designed for Top-Load Fully Automatic washing machines with a large mounting footprint.
Technical Specifications
Based on the engineering measurements in the image:
- Mounting Plate: Measures 400mm in length and 200mm in width.
- Overall Height: The unit has a total vertical height of 227mm.
- Top Shaft Length: The upper drive shaft is 41mm long.
- Base Pulley Diameter: The bottom belt pulley has a diameter of 113mm.
- Model Number: DFS-7F5A (DFS-005).
Functional Details
- Mechanism: This is a Double Gear (Twin Gear) assembly, which provides more stable torque for heavier laundry loads compared to single-gear models.
- Compatibility: This large “Full Plate” design is commonly used in high-capacity top-loaders from brands like Sharp, Midea, and Samsung, depending on the specific model year.
- Material: It features a durable, corrosion-resistant silver-tone metal housing built for heavy-duty daily use.
