410L.Washing Machine Clutch Gearbox: DFS-004
This part is an DFS-004 Washing Machine Clutch Gearbox (also known as a reducer), typically used in Top-Load Fully Automatic washing machines with a large mounting plate.
Technical Specifications

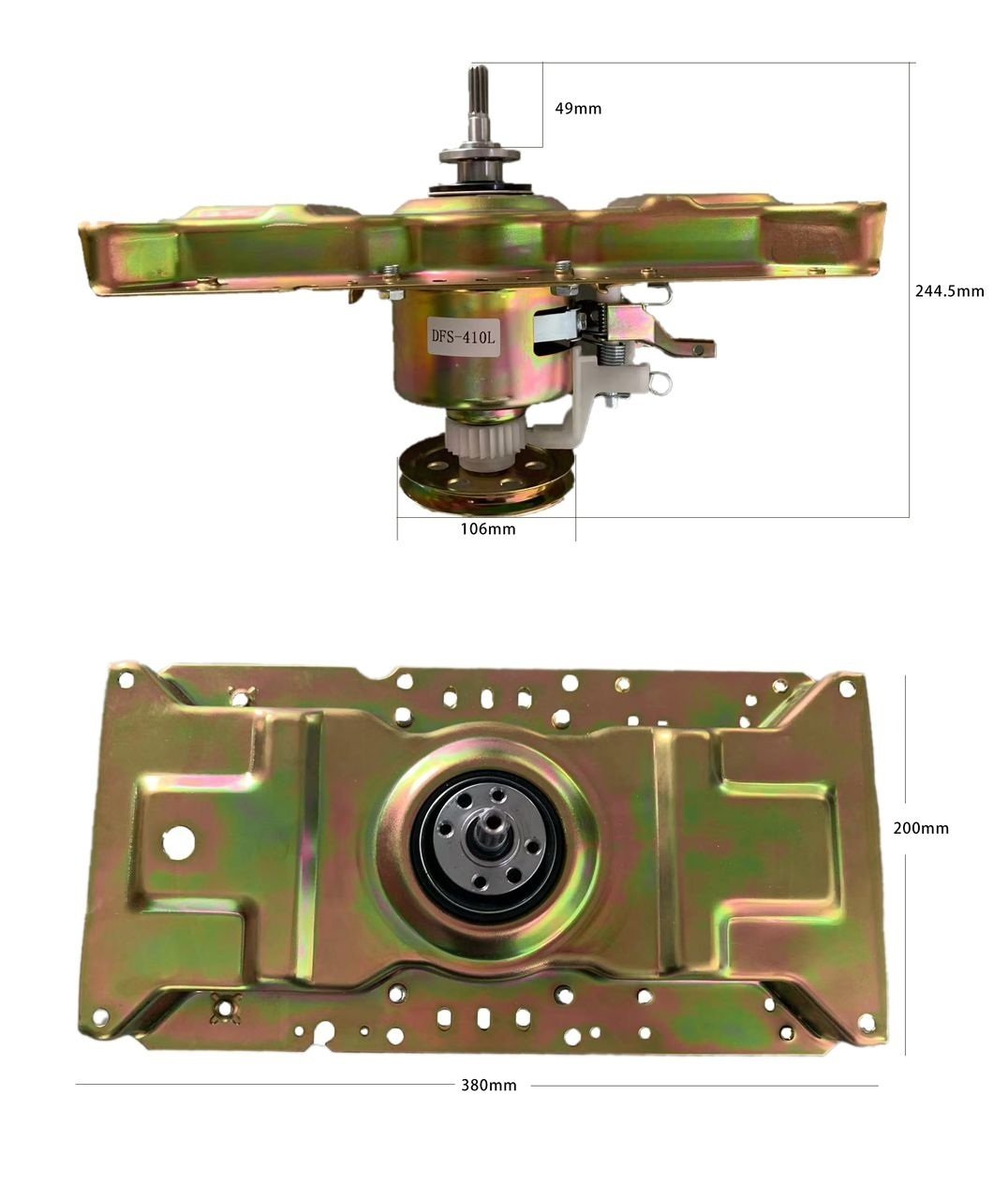

Based on the engineering diagram in the image:
- Mounting Plate Dimensions: The rectangular metal base measures 380mm in length and 200mm in width.
- Total Height: The unit has an overall vertical height of 244.5mm.
- Top Shaft Length: The drive shaft (where the agitator or pulsator connects) is 49mm long.
- Base Pulley Diameter: The bottom belt pulley has a diameter of 106mm.
- Model Number: DFS-410L (DFS-004).
Design & Compatibility
- Plate Design: Features a wide, reinforced gold-tone (zinc-plated) metal base for stability in high-capacity machines.
- Common Brands: This specific large-plate configuration is frequently compatible with various international brands like Toshiba, Haier, or Panasonic top-loaders, though it’s essential to match the 380mm x 200mm plate dimensions.
- Operation: It controls the mechanical shift between the wash cycle (low speed, high torque) and the spin cycle (high speed).
Description
Description
This part is an DFS-004 Washing Machine Clutch Gearbox (also known as a reducer), typically used in Top-Load Fully Automatic washing machines with a large mounting plate.
Technical Specifications
Based on the engineering diagram in the image:
- Mounting Plate Dimensions: The rectangular metal base measures 380mm in length and 200mm in width.
- Total Height: The unit has an overall vertical height of 244.5mm.
- Top Shaft Length: The drive shaft (where the agitator or pulsator connects) is 49mm long.
- Base Pulley Diameter: The bottom belt pulley has a diameter of 106mm.
- Model Number: DFS-410L (DFS-004).
Design & Compatibility
- Plate Design: Features a wide, reinforced gold-tone (zinc-plated) metal base for stability in high-capacity machines.
- Common Brands: This specific large-plate configuration is frequently compatible with various international brands like Toshiba, Haier, or Panasonic top-loaders, though it’s essential to match the 380mm x 200mm plate dimensions.
- Operation: It controls the mechanical shift between the wash cycle (low speed, high torque) and the spin cycle (high speed).
