LG. Washing Machine Clutch/Transmission Assembly: AFTC-DFS-001

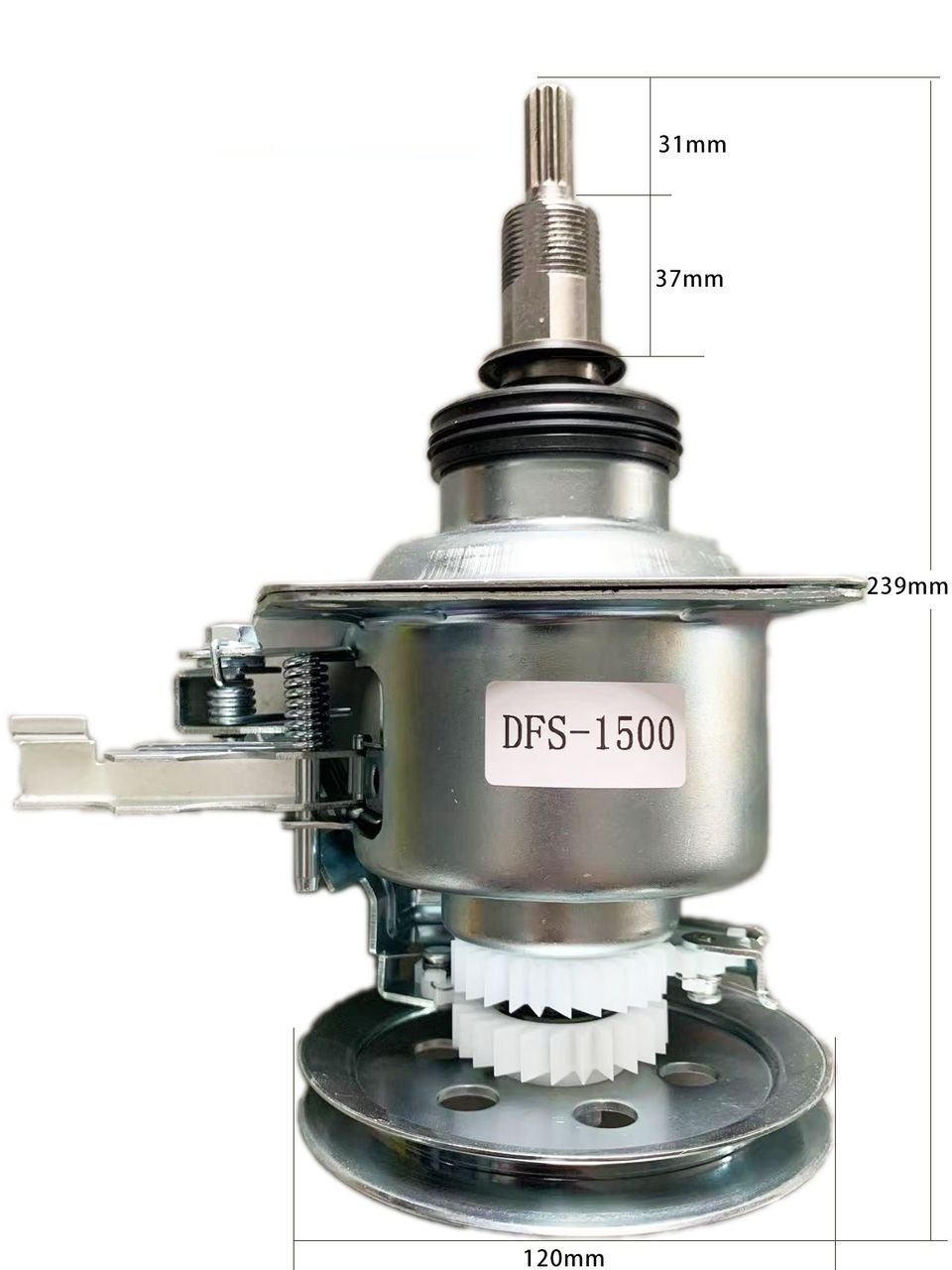

Based on the image provided, this is a AFTC-DFS-1500 Washing Machine Clutch/Transmission Assembly (also known as a gearbox). It is designed specifically for LG Top-Load Fully Automatic washing machines with large capacities, typically ranging from 11kg to 16kg.
Technical Specifications
From the technical markers in the image and similar technical data:
- Dimensions:
- Top Shaft Lengths: 31mm and 37mm segments.
- Overall Body Height: Approximately 239mm.
- Base Diameter: 120mm.
- Gear Type: It features a “Twin Gear” (double gear) mechanism, visible in the white plastic assembly at the base.
- Compatibility: Designed for high-capacity LG “Big” models (11kg–16kg) that use a pulsator or “TurboDrum” system.
Product Identification
- Model Number: DFS-1500 (AFTC-DFS-001).
- Material: Built with a durable metal housing and stainless steel components for high efficiency.
- Function: This unit acts as the primary reducer and clutch mechanism, controlling the speed and switching between wash (pulsating) and spin (high-speed rotation) cycles.📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
Based on the image provided, this is a AFTC-DFS-1500 Washing Machine Clutch/Transmission Assembly (also known as a gearbox). It is designed specifically for LG Top-Load Fully Automatic washing machines with large capacities, typically ranging from 11kg to 16kg.
Technical Specifications
From the technical markers in the image and similar technical data:
- Dimensions:
- Top Shaft Lengths: 31mm and 37mm segments.
- Overall Body Height: Approximately 239mm.
- Base Diameter: 120mm.
- Gear Type: It features a “Twin Gear” (double gear) mechanism, visible in the white plastic assembly at the base.
- Compatibility: Designed for high-capacity LG “Big” models (11kg–16kg) that use a pulsator or “TurboDrum” system.
Product Identification
- Model Number: DFS-1500 (AFTC-DFS-001).
- Material: Built with a durable metal housing and stainless steel components for high efficiency.
- Function: This unit acts as the primary reducer and clutch mechanism, controlling the speed and switching between wash (pulsating) and spin (high-speed rotation) cycles.📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
