Radial Insert Ball Bearing: AFTC-UC206

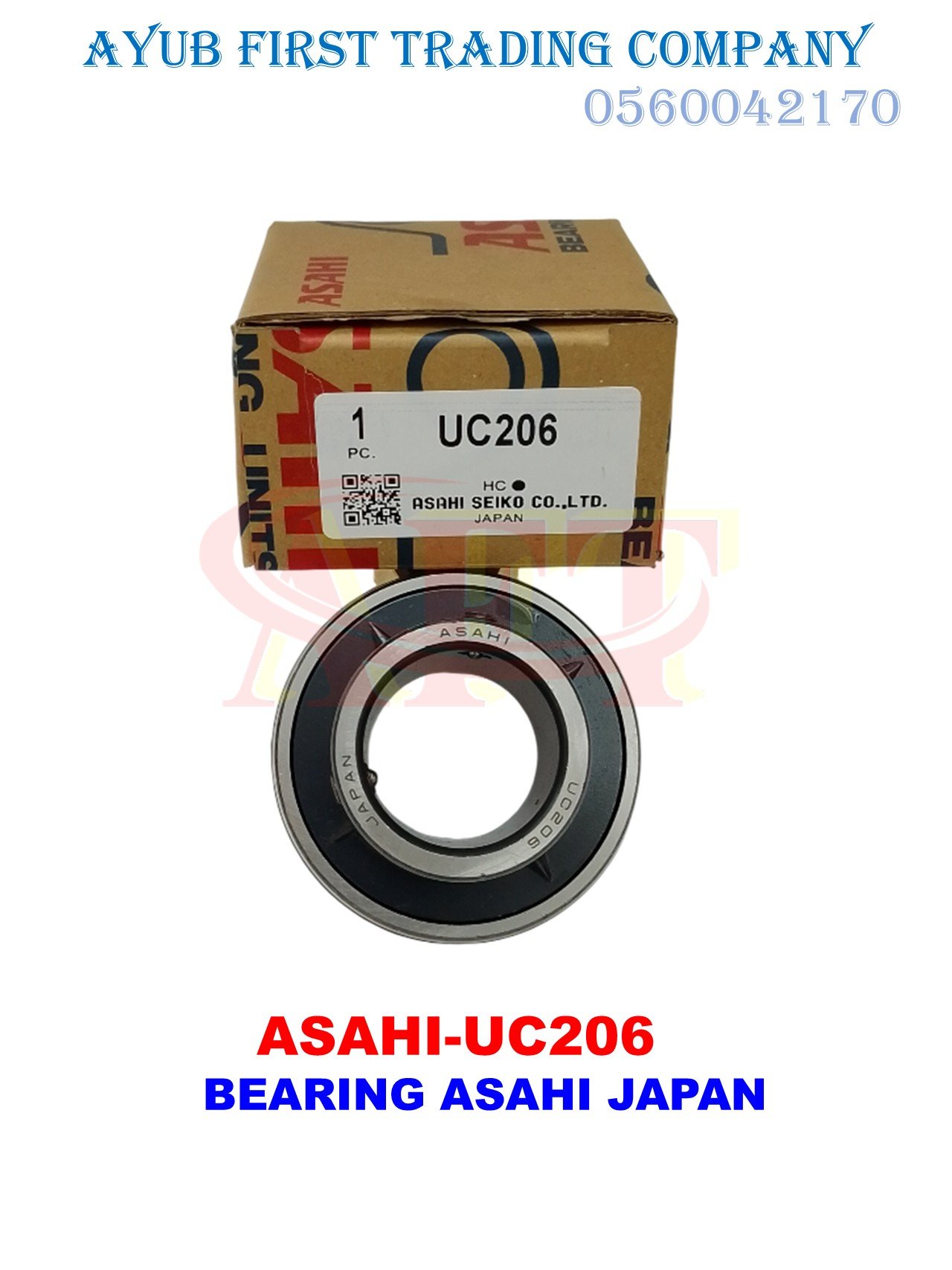

The product in the image is an Radial Insert Ball Bearing: AFTC-UC206 , an essential replacement component for agricultural machinery, conveyor systems, packaging units, and commercial pillow block assemblies. It is manufactured under premium precision industrial standards by Asahi Seiko Co., Ltd., Japan. [1]
🔍 Technical Specifications
- Model Number: AFTC-UC206
- Manufacturer Part Number: Asahi UC206
- Bearing Type: Spherical Outer Diameter Insert Ball Bearing
- Shaft Bore Diameter (Inner d): 30 mm
- Outer Diameter (D): 62 mm
- Inner Ring Width (B): 38.1 mm
- Outer Ring Width (C): 19 mm
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 19,600 N (19.60 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 11,300 N (11.30 kN)
⚙️ Design & Features
- Extended Inner Ring Configuration: Designed with an extended inner ring on both sides to provide reliable shaft support, reducing operational shaft tilt and enabling smoother high-speed performance.
- Spherical Outer Ring Geometry: Features a convex, spherically ground outer race that pairs seamlessly with cast iron housing units (such as P206 or F206 blocks) to provide dynamic self-alignment capabilities.
- Double-Layer High-Efficiency Seals: Configured with a robust synthetic rubber contact seal reinforced with a steel slinger to firmly shield against dirt, dust, and moisture ingress while retaining internal grease. [
- Dual Set-Screw Locking System: Equipped with two hexagon socket grub screws on the inner ring extension to establish a secure, slip-resistant grip onto the running shaft under varying rotation cycles.
- Integrated Relubrication Port: Supplied with a factory pre-lubricated grease reservoir along with an external lubrication groove and oil holes on the outer ring to support regular service top-offs.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
Description
Description
The product in the image is an Radial Insert Ball Bearing: AFTC-UC206 , an essential replacement component for agricultural machinery, conveyor systems, packaging units, and commercial pillow block assemblies. It is manufactured under premium precision industrial standards by Asahi Seiko Co., Ltd., Japan. [1]
🔍 Technical Specifications
- Model Number: AFTC-UC206
- Manufacturer Part Number: Asahi UC206
- Bearing Type: Spherical Outer Diameter Insert Ball Bearing
- Shaft Bore Diameter (Inner d): 30 mm
- Outer Diameter (D): 62 mm
- Inner Ring Width (B): 38.1 mm
- Outer Ring Width (C): 19 mm
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 19,600 N (19.60 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 11,300 N (11.30 kN)
⚙️ Design & Features
- Extended Inner Ring Configuration: Designed with an extended inner ring on both sides to provide reliable shaft support, reducing operational shaft tilt and enabling smoother high-speed performance.
- Spherical Outer Ring Geometry: Features a convex, spherically ground outer race that pairs seamlessly with cast iron housing units (such as P206 or F206 blocks) to provide dynamic self-alignment capabilities.
- Double-Layer High-Efficiency Seals: Configured with a robust synthetic rubber contact seal reinforced with a steel slinger to firmly shield against dirt, dust, and moisture ingress while retaining internal grease. [
- Dual Set-Screw Locking System: Equipped with two hexagon socket grub screws on the inner ring extension to establish a secure, slip-resistant grip onto the running shaft under varying rotation cycles.
- Integrated Relubrication Port: Supplied with a factory pre-lubricated grease reservoir along with an external lubrication groove and oil holes on the outer ring to support regular service top-offs.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
