TMDJ521ZC1 Toshiba 220V. REF. TIMER : AFTC-REFT-006
-
-
-
-

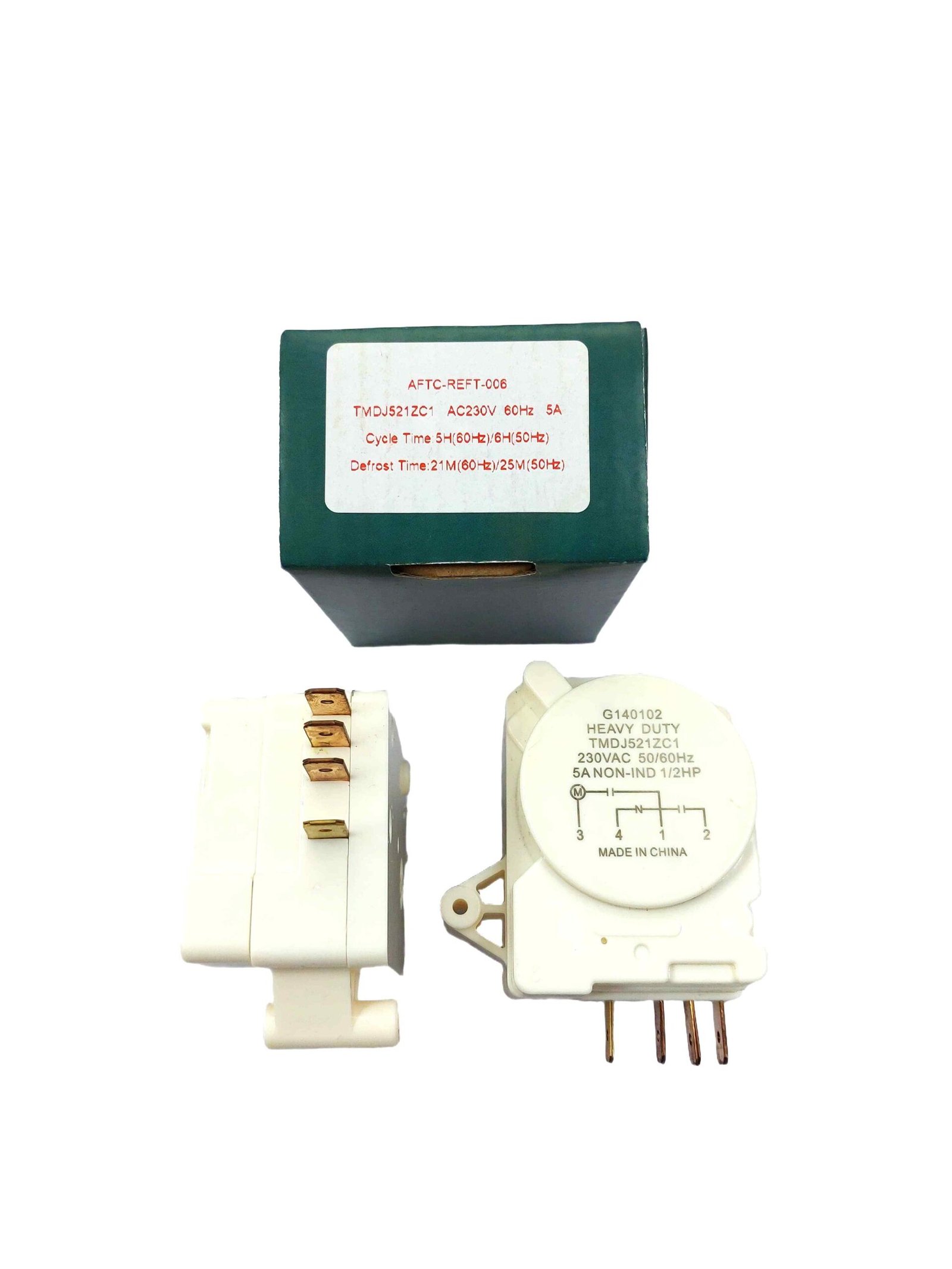

Here are the full details for the refrigerator defrost timer shown in the image:Product Identification
-
-
-
- Model Number: AFTC-REFT-006 REF. TIMER
- Part Number (on unit): TMDJ521ZC1
- Compatible Brand: Often used in Toshiba and similar heavy-duty refrigerators.
Technical Specifications
- Voltage: AC 230V.
- Frequency: 50/60Hz.
- Amperage: 5A Non-Inductive / 1/2HP (Heavy Duty).
- Cycle Timing (60Hz): 5 hours.
- Cycle Timing (50Hz): 6 hours.
- Defrost Timing (60Hz): 21 minutes.
- Defrost Timing (50Hz): 25 minutes.
- Motor Configuration: M3-1 (Internal motor connects between terminals 3 and 1).
Physical & Design Features- Construction: White plastic housing with integrated mounting tabs.
- Terminals: Standard 4-pin male spade configuration (labeled 3, 4, 1, 2).
- Rating: Labeled as “HEAVY DUTY” to handle higher power compressor loads.
- Origin: Made in China.
-
-
-
-
-
-
Description
Description
Here are the full details for the refrigerator defrost timer shown in the image:
Product Identification
-
-
-
- Model Number: AFTC-REFT-006 REF. TIMER
- Part Number (on unit): TMDJ521ZC1
- Compatible Brand: Often used in Toshiba and similar heavy-duty refrigerators.
- Technical Specifications
- Voltage: AC 230V.
- Frequency: 50/60Hz.
- Amperage: 5A Non-Inductive / 1/2HP (Heavy Duty).
- Cycle Timing (60Hz): 5 hours.
- Cycle Timing (50Hz): 6 hours.
- Defrost Timing (60Hz): 21 minutes.
- Defrost Timing (50Hz): 25 minutes.
- Motor Configuration: M3-1 (Internal motor connects between terminals 3 and 1).
Physical & Design Features- Construction: White plastic housing with integrated mounting tabs.
- Terminals: Standard 4-pin male spade configuration (labeled 3, 4, 1, 2).
- Rating: Labeled as “HEAVY DUTY” to handle higher power compressor loads.
- Origin: Made in China.
-
-
