TMDJX35RB9 Whirlpool, Kenmore, and Roper refrigerators. 120V. REF. TIMER : AFTC-REFT-007

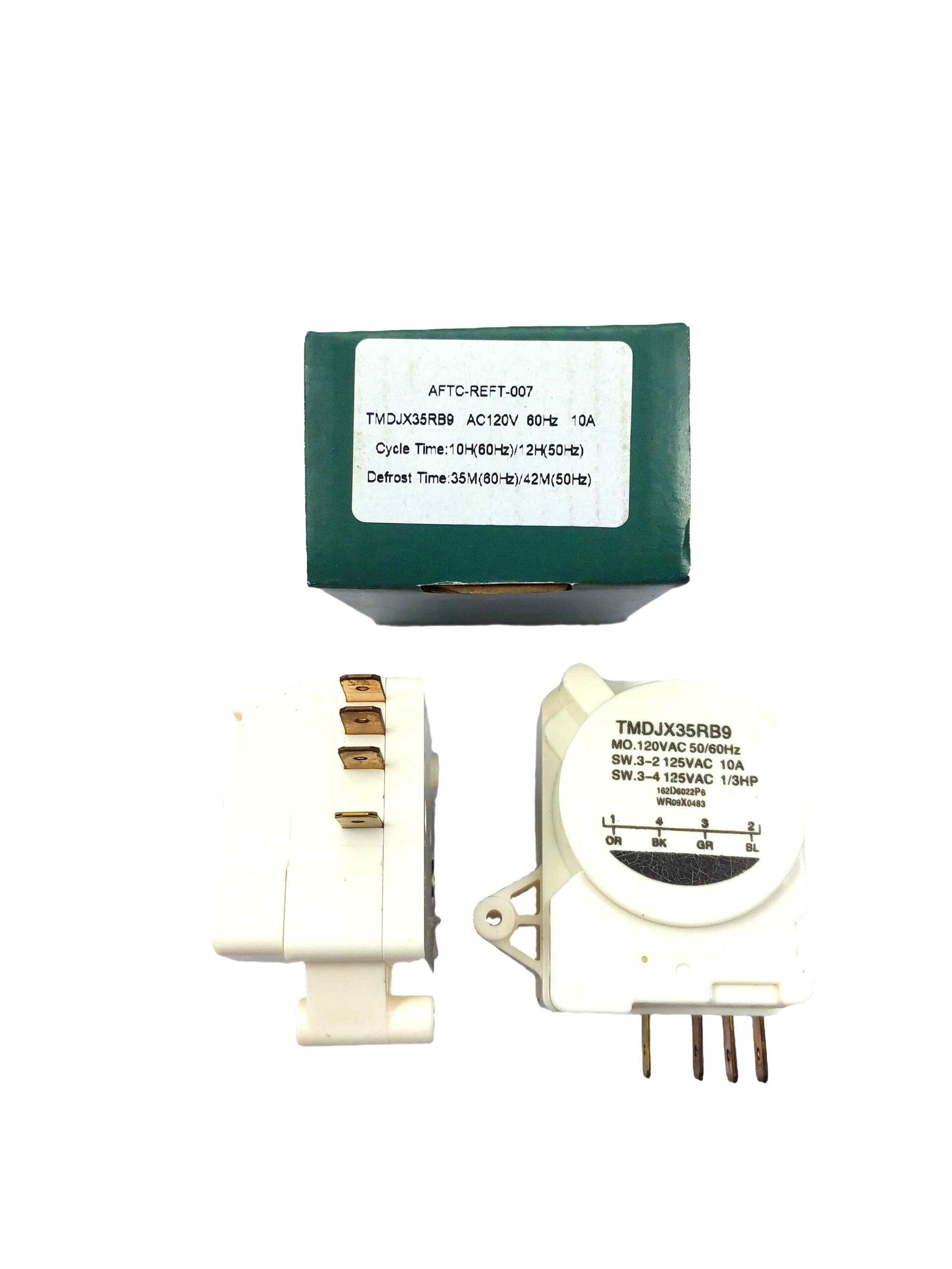

Here are the full details for the refrigerator defrost timer shown in the image:
Product Identification
-
-
-
- Model Number: AFTC-REFT-007 REF. TIMER
-
- Part Number (on unit): TMDJX35RB9
- Compatible Brand: Often used in Whirlpool, Kenmore, and Roper refrigerators.
Technical Specifications- Voltage: AC 120V.
- Frequency: 50/60Hz.
- Amperage (Switch 3-2): 10A 125VAC.
- Amperage (Switch 3-4): 1/3HP 125VAC.
- Cycle Timing (60Hz): 10 hours.
- Cycle Timing (50Hz): 12 hours.
- Defrost Timing (60Hz): 35 minutes.
- Defrost Timing (50Hz): 42 minutes.
Physical & Design Features- Construction: White plastic housing with integrated mounting tabs.
- Terminals: Standard 4-pin male spade configuration (labeled 1, 4, 3, 2).
- Wiring Color Code (per label):
- 1: OR (Orange)
- 4: BK (Black)
- 3: GR (Green/Gray)
- 2: BL (Blue)
- Origin: Made in China.
-
-
Description
Description
Here are the full details for the refrigerator defrost timer shown in the image:
Product Identification
-
-
-
- Model Number: AFTC-REFT-007 REF. TIMER
-
- Part Number (on unit): TMDJX35RB9
- Compatible Brand: Often used in Whirlpool, Kenmore, and Roper refrigerators.
Technical Specifications- Voltage: AC 120V.
- Frequency: 50/60Hz.
- Amperage (Switch 3-2): 10A 125VAC.
- Amperage (Switch 3-4): 1/3HP 125VAC.
- Cycle Timing (60Hz): 10 hours.
- Cycle Timing (50Hz): 12 hours.
- Defrost Timing (60Hz): 35 minutes.
- Defrost Timing (50Hz): 42 minutes.
Physical & Design Features- Construction: White plastic housing with integrated mounting tabs.
- Terminals: Standard 4-pin male spade configuration (labeled 1, 4, 3, 2).
- Wiring Color Code (per label):
- 1: OR (Orange)
- 4: BK (Black)
- 3: GR (Green/Gray)
- 2: BL (Blue)
- Origin: Made in China.
-
-
