washing machine clutch assembly: DFS-010

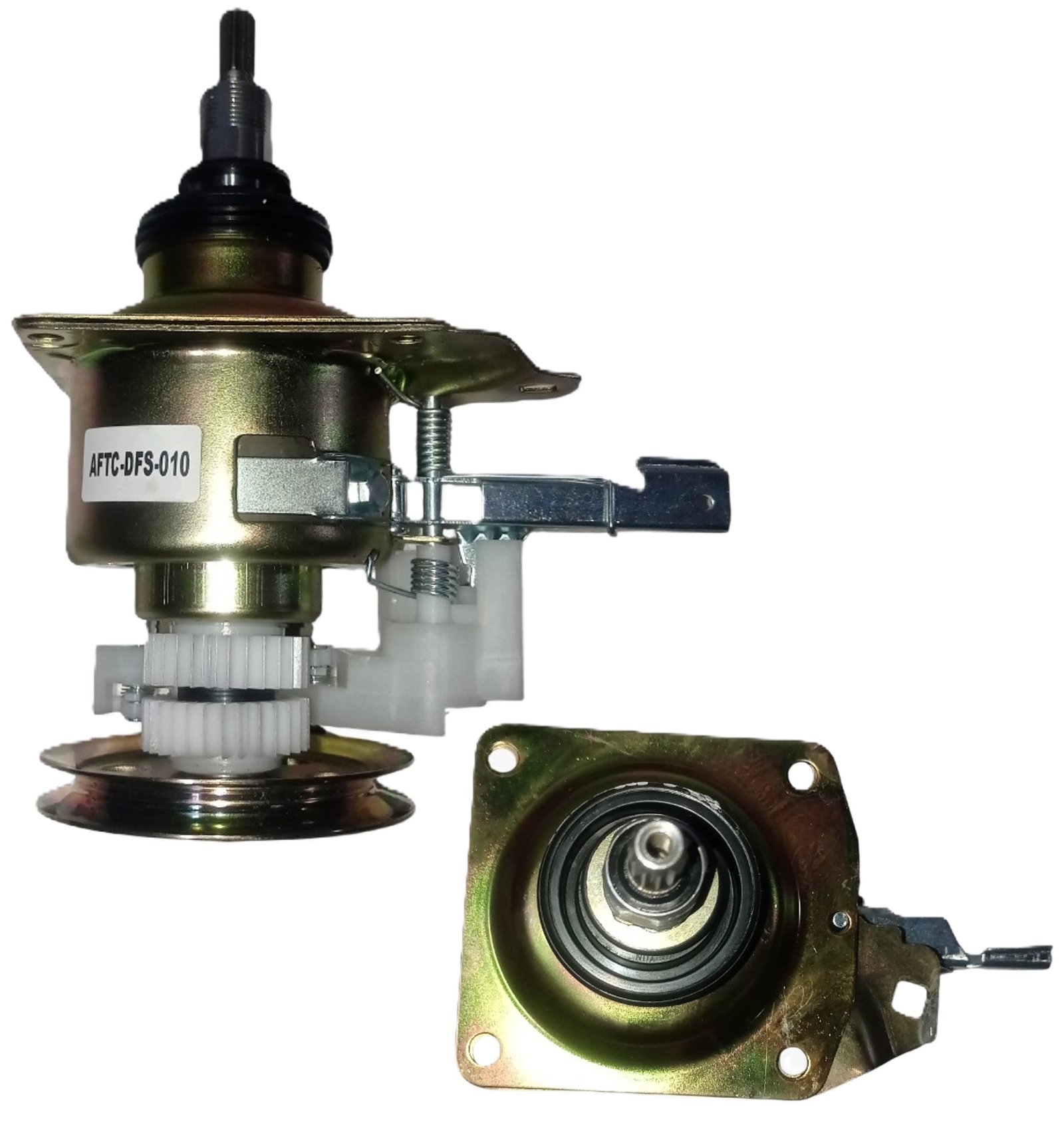

This image displays a washing machine clutch assembly, a critical spare part used in top-loading washing machines to transition between agitation and spin cycles.
Product Specifications
Based on the labels and visual details in the image:
- Model Number: DFS-010.
- Component Type: Metal Clutch / Gearbox Assembly.
- Capacity/Rating: DFS-6KG (likely indicating compatibility with 6kg capacity washing machines).
- Color/Finish: Golden metal housing.
- Compatibility: Visually, this part is consistent with clutch assemblies for LG and Panasonic top-load fully automatic washing machines.
Key Components Shown
- Splined Input Shaft: The top vertical shaft that connects to the agitator or wash tub.
- Shifter Lever: The horizontal metal arm used to engage or disengage the clutch mechanism.
- Plastic Gears: White nylon gears at the base that manage the rotation ratio for different cycles.
- Drive Pulley: The large circular base where the motor belt attaches to power the unit.
Description
Description
This image displays a washing machine clutch assembly, a critical spare part used in top-loading washing machines to transition between agitation and spin cycles.
Product Specifications
Based on the labels and visual details in the image:
- Model Number: DFS-010.
- Component Type: Metal Clutch / Gearbox Assembly.
- Capacity/Rating: DFS-6KG (likely indicating compatibility with 6kg capacity washing machines).
- Color/Finish: Golden metal housing.
- Compatibility: Visually, this part is consistent with clutch assemblies for LG and Panasonic top-load fully automatic washing machines.
Key Components Shown
- Splined Input Shaft: The top vertical shaft that connects to the agitator or wash tub.
- Shifter Lever: The horizontal metal arm used to engage or disengage the clutch mechanism.
- Plastic Gears: White nylon gears at the base that manage the rotation ratio for different cycles.
- Drive Pulley: The large circular base where the motor belt attaches to power the unit.
