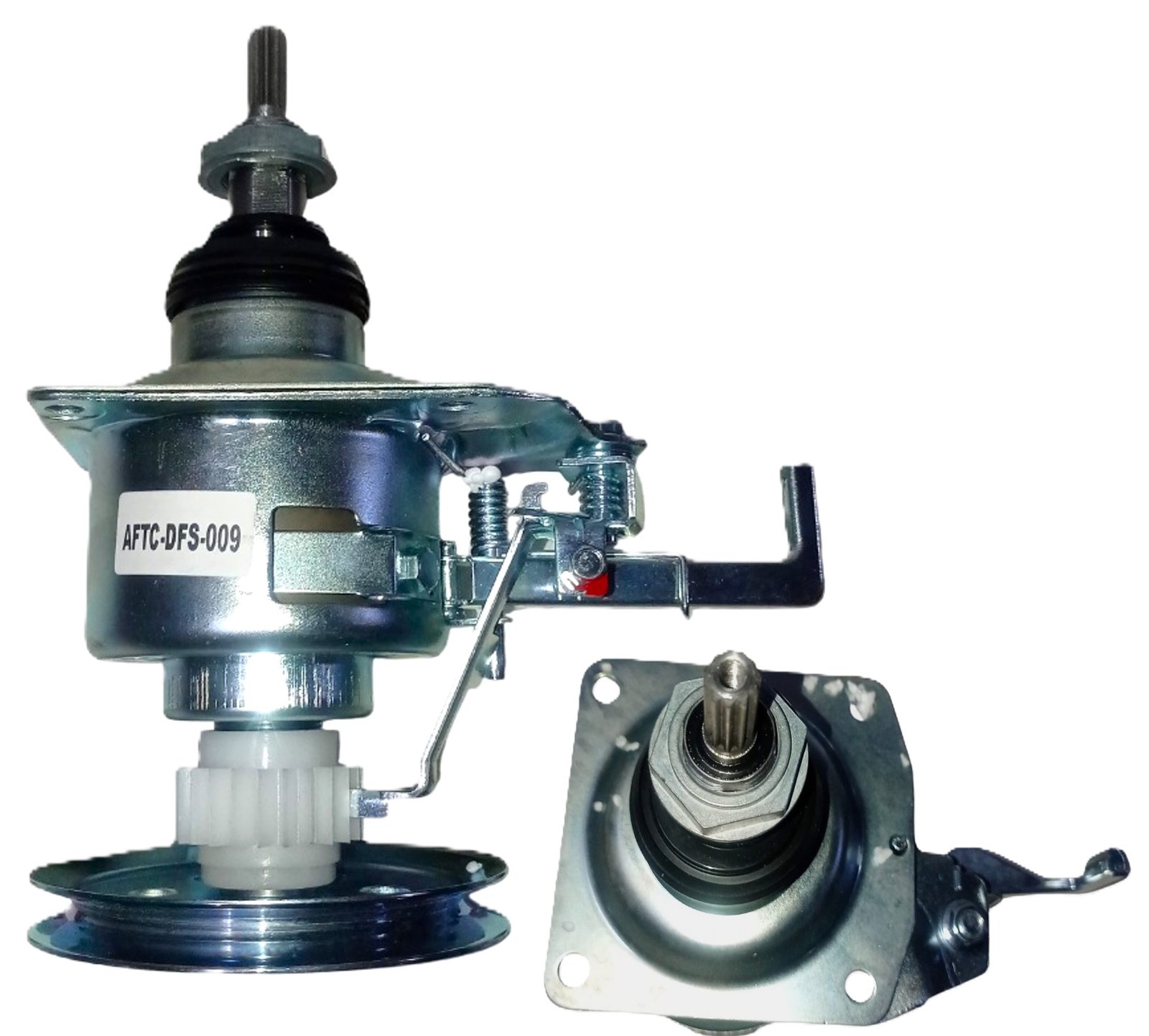

Samsung. washing machines Metal Clutch Assembly: AFTC-DFS-009
This is the AFTC-DFS-009 Metal Clutch Assembly, a specific gearbox/reducer designed for Samsung Fully Automatic Top-Load washing machines.
Product Identification
- Model Number: Samsung DFS-1158 (Catalog ID: AFTC-DFS-009).
- Part Type: Metal Clutch / Transmission Assembly.
- Mechanism: It features a Single Gear system with a square mounting flange, typical for Samsung “Diamond Drum” or “Wobble” technology models.
Technical Design
- Mounting Base: A compact, four-hole square metal flange. This differs from the “Full Plate” (380mm/400mm) versions used in other brands.
- Shaft Type: Splined upper shaft designed to lock into a Samsung pulsator.
- Components: Includes the drive shaft, internal reduction gears, brake lever assembly, and the bottom belt pulley.
- Material: High-grade steel housing with anti-corrosive plating for longevity in high-moisture environments.
Compatibility & Function
- Capacity: Generally used in Samsung top-loaders ranging from 6kg to 12kg.
- Role: It manages the transition between the low-speed wash cycle (pulsating) and the high-speed centrifugal spin cycle.
- Common Failure Signs: A loud screeching sound during the spin cycle, the pulsator not turning while the motor runs, or a “locked” drum that won’t move by hand.📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
