Washing Machine Clutch Gearbox : DFS-007
This is the DFS-007 Washing Machine Clutch Gearbox (reducer), specifically designed for Top-Load Fully Automatic washing machines with a large mounting footprint.
Technical Specifications

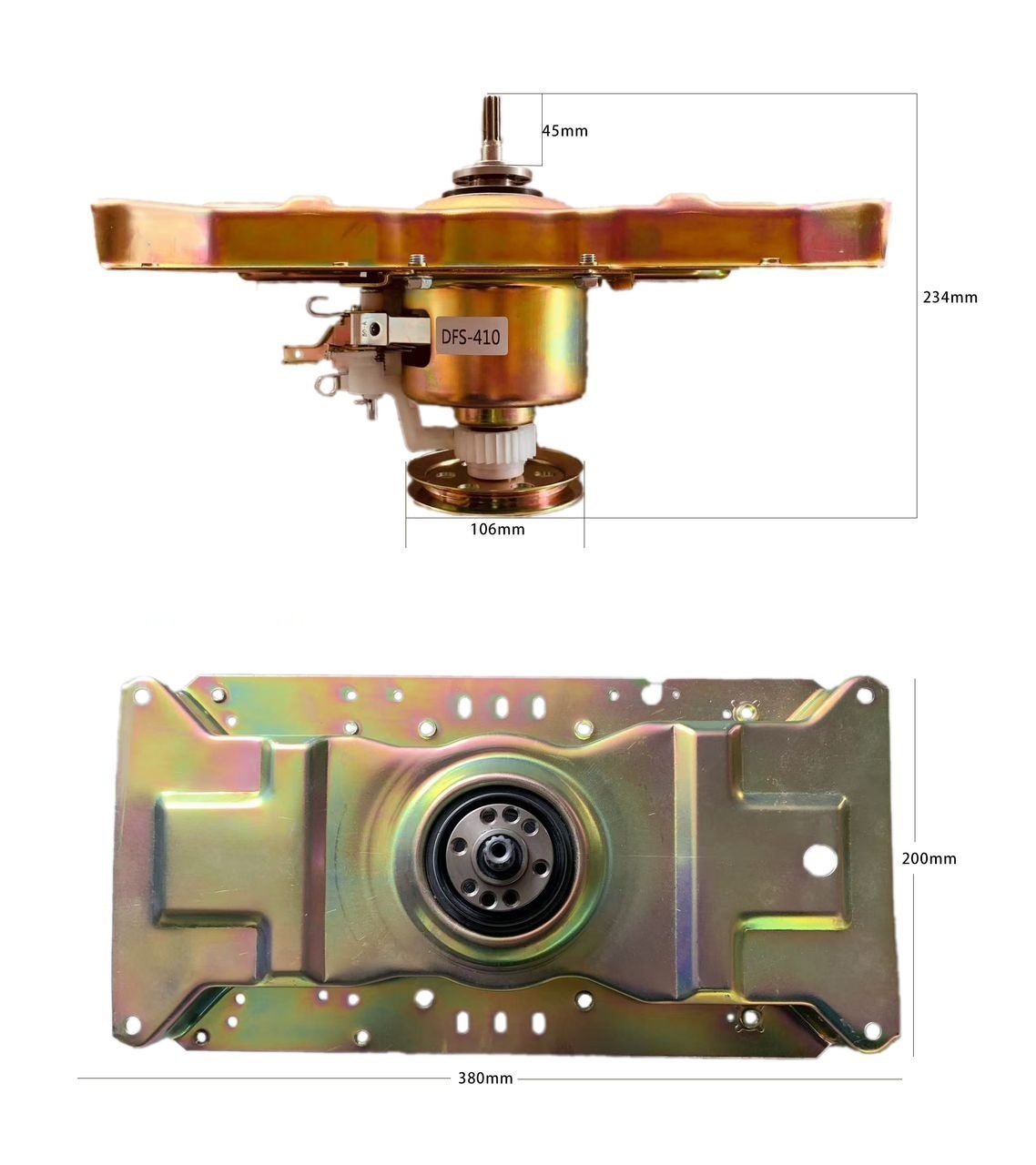

Based on the engineering measurements in the image:
- Mounting Plate: Measures 380mm in length and 200mm in width.
- Overall Height: The unit has a total vertical height of 234mm.
- Top Shaft Length: The upper drive shaft is 45mm long.
- Base Pulley Diameter: The bottom belt pulley has a diameter of 106mm.
- Internal Model Number: DFS-410 (DFS-007).
Functional Details
- Mechanism: This is a Single Gear assembly, which provides reliable torque for standard laundry loads and efficient transitions between wash and spin cycles.
- Compatibility: This large-plate design is common in high-capacity top-loaders from brands like Toshiba, Haier, or Panasonic, depending on the specific model year.
- Material: It features a durable, gold-tone (zinc-plated) metal housing built for heavy-duty daily use and corrosion resistance.
Description
Description
This is the DFS-007 Washing Machine Clutch Gearbox (reducer), specifically designed for Top-Load Fully Automatic washing machines with a large mounting footprint.
Technical Specifications
Based on the engineering measurements in the image:
- Mounting Plate: Measures 380mm in length and 200mm in width.
- Overall Height: The unit has a total vertical height of 234mm.
- Top Shaft Length: The upper drive shaft is 45mm long.
- Base Pulley Diameter: The bottom belt pulley has a diameter of 106mm.
- Internal Model Number: DFS-410 (DFS-007).
Functional Details
- Mechanism: This is a Single Gear assembly, which provides reliable torque for standard laundry loads and efficient transitions between wash and spin cycles.
- Compatibility: This large-plate design is common in high-capacity top-loaders from brands like Toshiba, Haier, or Panasonic, depending on the specific model year.
- Material: It features a durable, gold-tone (zinc-plated) metal housing built for heavy-duty daily use and corrosion resistance.
