Extra-Large Capacity Top-Load Fully Automatic Washing Machines: DFS-008

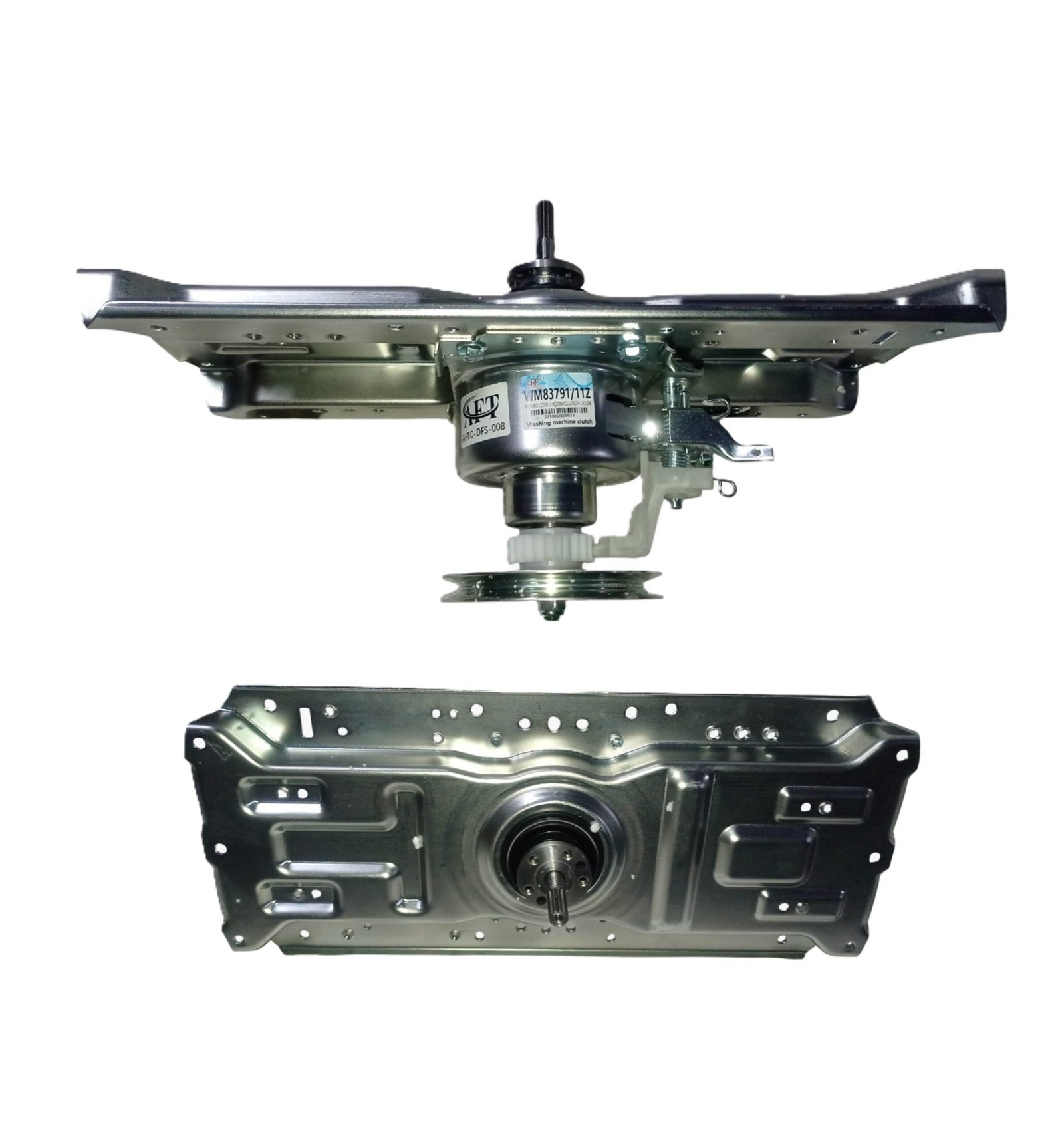

This is the DFS-008 Metal Clutch Assembly (Gearbox), specifically designed for extra-large capacity top-load fully automatic washing machines.
Technical Specifications
Based on the technical markers and measurements in the image:
- Mounting Plate Length: 48cm (480mm). This is one of the largest plate sizes available for top-load gearboxes.
- Part Number: DFS-008.
- Material: High-durability galvanized steel for the mounting plate and a reinforced metal housing for the internal gears.
- Mechanism: It features a heavy-duty single or twin gear reduction system (standard for this size) and a bottom belt pulley for motor connection.
Compatibility
Because of its unique 48cm length, this clutch is typically compatible with:
- High-Capacity Models: Specifically designed for “Big” washing machines (usually 15kg to 20kg+ capacity).
- Common Brands: Often used as a replacement for high-capacity Samsung, Daewoo, or Midea top-loaders that utilize a wide, full-plate mounting system.
Function
This component is the “transmission” of your washing machine. It performs two critical roles:
- Wash Cycle: Reduces motor speed to provide high torque for rotating the pulsator/agitator.
- Spin Cycle: Engages the clutch to rotate the entire inner drum at high speeds for water extraction.
Description
Description
This is the DFS-008 Metal Clutch Assembly (Gearbox), specifically designed for extra-large capacity top-load fully automatic washing machines.
Technical Specifications
Based on the technical markers and measurements in the image:
- Mounting Plate Length: 48cm (480mm). This is one of the largest plate sizes available for top-load gearboxes.
- Part Number: DFS-008.
- Material: High-durability galvanized steel for the mounting plate and a reinforced metal housing for the internal gears.
- Mechanism: It features a heavy-duty single or twin gear reduction system (standard for this size) and a bottom belt pulley for motor connection.
Compatibility
Because of its unique 48cm length, this clutch is typically compatible with:
- High-Capacity Models: Specifically designed for “Big” washing machines (usually 15kg to 20kg+ capacity).
- Common Brands: Often used as a replacement for high-capacity Samsung, Daewoo, or Midea top-loaders that utilize a wide, full-plate mounting system.
Function
This component is the “transmission” of your washing machine. It performs two critical roles:
- Wash Cycle: Reduces motor speed to provide high torque for rotating the pulsator/agitator.
- Spin Cycle: Engages the clutch to rotate the entire inner drum at high speeds for water extraction.
