YM-100 Universal Washing Machine PCB kit
Based on the image provided, here are the details for the YM-100 Universal Washing Machine PCB kit:
Product Overview
The YM-100 is a universal replacement control board (PCB) designed for fully automatic top-loading (wave wheel) washing machines. It is used as a repair part when the original manufacturer’s board is unresponsive or damaged.

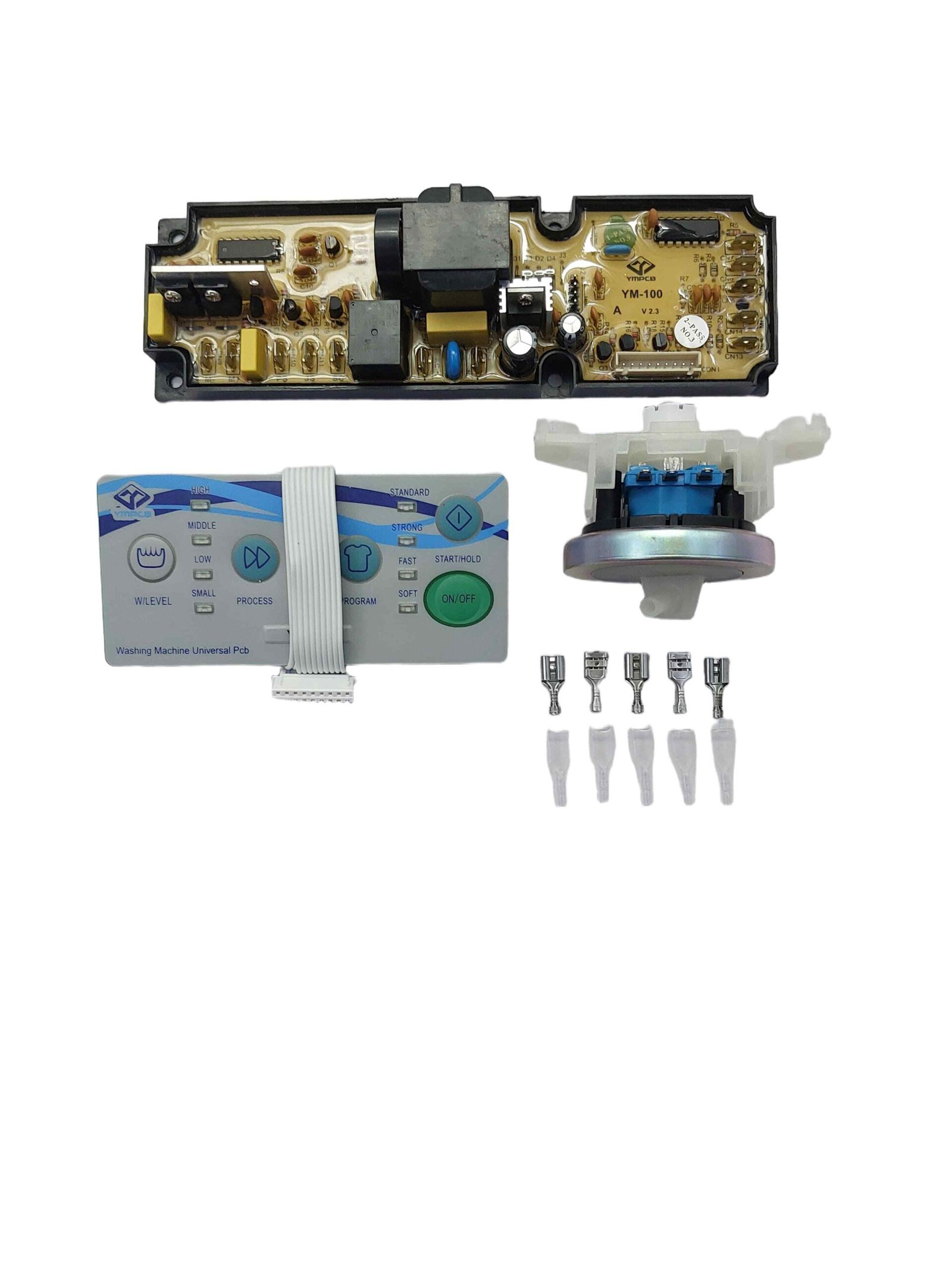

Kit Components
- Main PCB Board: The central “brain” that manages electrical flow and coordinates functions like water filling, spinning, and timing.
- Control Panel Overlay: A user-friendly interface with buttons for Power (On/Off), Start/Pause, Water Level adjustment, and Program/Process selection.
- Pressure Switch (Water Level Sensor): An electronic component that monitors the water level inside the drum.
- Wiring/Connectors: Includes terminal connectors for linking the board to the machine’s internal components.
Key Features & Specifications
- Compatibility: Designed to fit most brands of top-load fully automatic washing machines.
- Functions: Supports standard wash cycles, including washing, rinsing, and spinning.
- Digital Display: Often includes an LED/LCD display to show cycle status and a 24-hour appointment function.
- Durability: Typically constructed from high-quality materials like epoxy resin for longevity.
Installation Notes- Safety First: Disconnect the washing machine from the power supply before starting.
- Documentation: Take photos of the original wiring before removal to ensure correct reconnection to the new board.
- Mounting: Secure the new PCB in the existing control panel housing using the original or provided screws.
- 📞 Contact & Procurement DetailsTo secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
