YM-500 Universal Washing Machine PCB kit

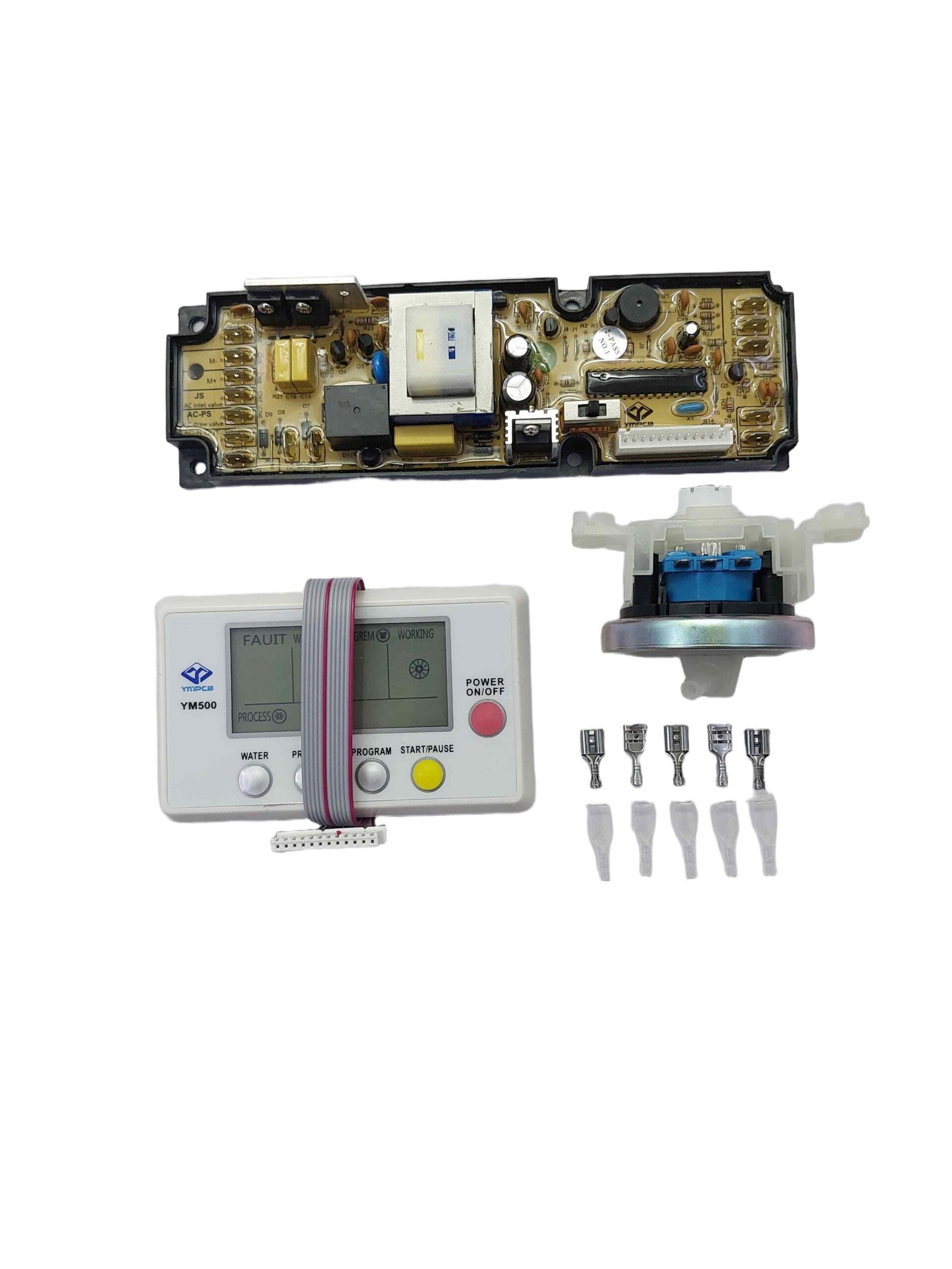

The image shows the YM-500 Universal Washing Machine PCB kit, an aftermarket replacement control system for fully automatic top-loading washing machines.
Core Components
- Main PCB (Printed Circuit Board): The central controller that manages the motor, water valves, and wash cycles.
- Digital Control Panel: Features an LED display and physical buttons for Power, Water Level, Program selection, and Start/Pause.
- Pressure Switch (Water Level Sensor): An electronic sensor that monitors water levels to prevent overflows.
- Wiring Terminals: Includes five spade connectors with protective sleeves for secure electrical connections.
Technical Specifications
- Model Number: YM-500.
- Voltage Requirement: Typically 220V AC (standard for universal kits in this region).
- Compatibility: Designed to fit most brands of top-load “wave wheel” (impeller) washing machines.
- Key Functions:
- 8-Stage Water Level Control: Allows precise water usage adjustment.
- Memory Function: Resumes the wash cycle from the point of interruption after a power failure.
- Fully Automatic: Controls washing, rinsing, and spinning cycles autonomously.
Description
Description
The image shows the YM-500 Universal Washing Machine PCB kit, an aftermarket replacement control system for fully automatic top-loading washing machines.
Core Components
- Main PCB (Printed Circuit Board): The central controller that manages the motor, water valves, and wash cycles.
- Digital Control Panel: Features an LED display and physical buttons for Power, Water Level, Program selection, and Start/Pause.
- Pressure Switch (Water Level Sensor): An electronic sensor that monitors water levels to prevent overflows.
- Wiring Terminals: Includes five spade connectors with protective sleeves for secure electrical connections.
Technical Specifications
- Model Number: YM-500.
- Voltage Requirement: Typically 220V AC (standard for universal kits in this region).
- Compatibility: Designed to fit most brands of top-load “wave wheel” (impeller) washing machines.
- Key Functions:
- 8-Stage Water Level Control: Allows precise water usage adjustment.
- Memory Function: Resumes the wash cycle from the point of interruption after a power failure.
- Fully Automatic: Controls washing, rinsing, and spinning cycles autonomously.
