Single Gear.Washing Machine Clutch Gear Assembly: DFS-003
This part is the DFS-003 Washing Machine Clutch Gear Assembly (also known as a gearbox or reducer). It is a critical mechanical component for top-load fully automatic washing machines, specifically designed for models with a square-based mounting plate.
Technical Specifications

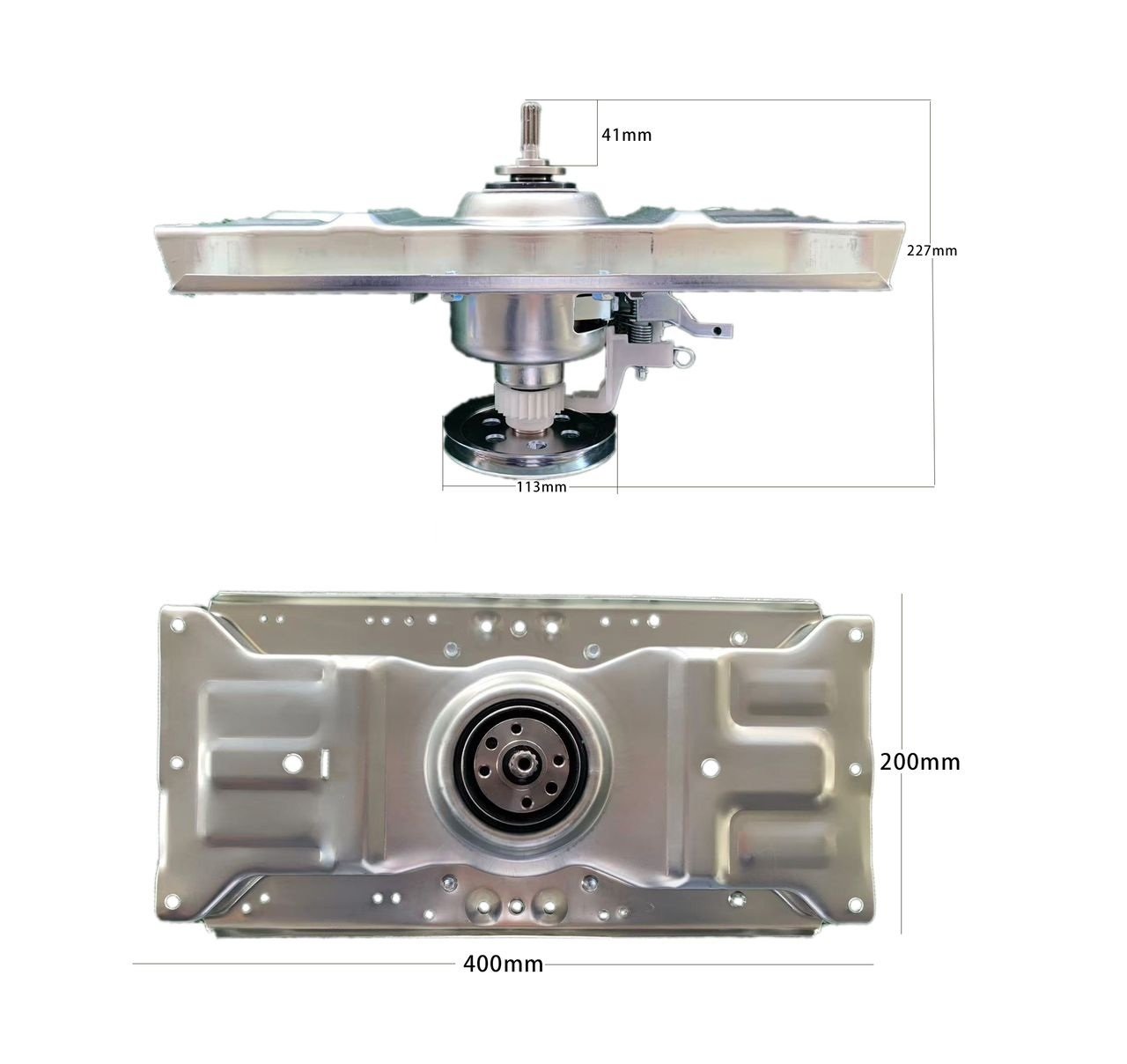

Based on the engineering measurements provided in the image:
- Mounting Plate Dimensions: The large metal base plate measures 400mm in length and 200mm in width.
- Overall Height: The unit has a total vertical height of 227mm.
- Top Shaft Length: The upper drive shaft, which connects to the pulsator or agitator, is 41mm long.
- Base Pulley Diameter: The bottom belt pulley has a diameter of 113mm.
- Teeth Count: Standard replacement units for this series typically feature 11 teeth on the drive shaft.
Compatibility & Function
- Mechanism: This is a Single Gear (or “Full Plate”) mechanism. It acts as the primary transmission that shifts the machine between the wash cycle (slow agitation) and the spin cycle (high-speed rotation).
- Common Brands: This specific large-plate design is frequently compatible with various automatic top-loaders from brands like Sharp, Midea, and Electrolux.
- Application: It is typically used in medium-to-large capacity machines, providing the torque necessary for heavy laundry loads.
Description
Description
This part is the DFS-003 Washing Machine Clutch Gear Assembly (also known as a gearbox or reducer). It is a critical mechanical component for top-load fully automatic washing machines, specifically designed for models with a square-based mounting plate.
Technical Specifications
Based on the engineering measurements provided in the image:
- Mounting Plate Dimensions: The large metal base plate measures 400mm in length and 200mm in width.
- Overall Height: The unit has a total vertical height of 227mm.
- Top Shaft Length: The upper drive shaft, which connects to the pulsator or agitator, is 41mm long.
- Base Pulley Diameter: The bottom belt pulley has a diameter of 113mm.
- Teeth Count: Standard replacement units for this series typically feature 11 teeth on the drive shaft.
Compatibility & Function
- Mechanism: This is a Single Gear (or “Full Plate”) mechanism. It acts as the primary transmission that shifts the machine between the wash cycle (slow agitation) and the spin cycle (high-speed rotation).
- Common Brands: This specific large-plate design is frequently compatible with various automatic top-loaders from brands like Sharp, Midea, and Electrolux.
- Application: It is typically used in medium-to-large capacity machines, providing the torque necessary for heavy laundry loads.
